Seagate ST42400ND (2.1GB)

5 1/4" 5400 RPM Differential Fast SCSI

Options 573 / 574 / 575 / 576

370-1412
3 1/4" Height 990002-002 Elite 2

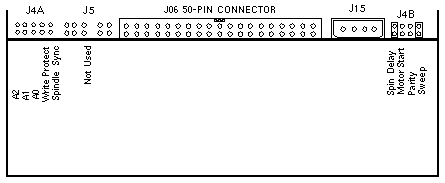

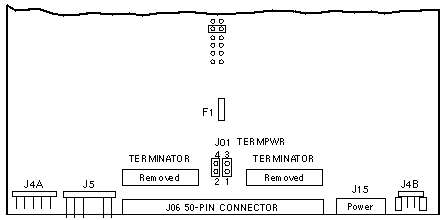

Top View End View

Notes

1. The minimum operating system is SunOS 4.1.3.
2. Jumpers J01, J4A, and J4B, use 2 mm shunts.
3. The J5 spindle synchronization connector is not used.
4. The DWIS/S requires 2.1GB drive Firmware 0420 (370-1412-03) for optimum performance. If the firmware is less than 0420, disable fast/wide transfers by adding
   "set scsi_options=0xf8" to /etc/system.

References

1. SCSI Expansion Pedestal Service Manual, 800-7286.
2. Differential SCSI Disk Tray Service Manual, 800-7341.
3. 2.1Gbyte Disk Drive Installation Manual, 800-7007.
