Seagate ST43401ND (2.9GB)

5 1/4" 5400 RPM Differential Fast/Wide SCSI

Options 583 / 584 / 585 / 586

370-1695
3 1/4" Height 992004-005/6 Elite 3

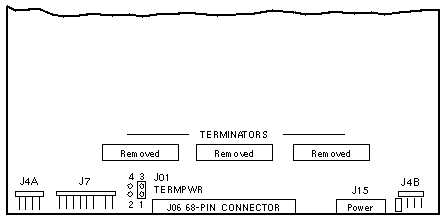

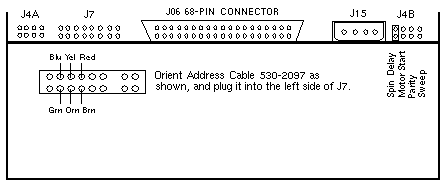

Top View End View

Notes

1. The minimum operating system is Solaris 2.3.
2. Solaris 2.3 requires Patch 101378-xx.
3. The firmware on 370-1695-02 is level 0407.

References

1. Differential SCSI Disk Tray Service Manual, 800-7341.
2. 2.9GByte Disk Drive Installation Manual, 801-2066.
3. Product Note, 801-6582.

Seagate ST43401ND (2.9GB)

5 1/4" 5400 RPM Differential Fast/Wide SCSI

CS6400 Peripheral Cabinet

370-2766	420-6113-001
3 1/4" Height 992004-001 Elite 3	BSD Part Number

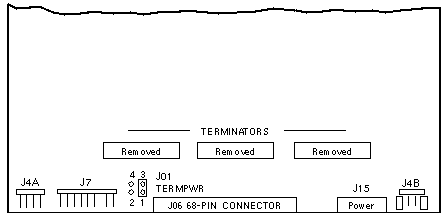

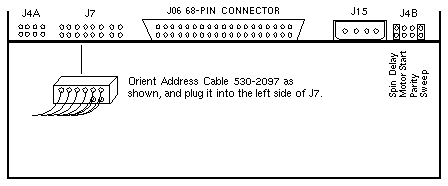

Top View End View

Power

2.85 Amps @ +5Vdc

1.85 Amps @ +12Vdc

36.45 Watts

Notes

1. The firmware on 370-2766-01 is level 0105 for Seagate 992004-001.
2. The firmware on 370-2766-01 is level 2100 for Seagate 992004-003, as configured by Cray. This new firmware level causes failures on the CS6400. The disk must be replaced with either an older 370-2766 (with firmware level 0105) or with 370-1695 (level 0407). Reformatting the disk and restoring the firmware back to 0105 is also possible. See Bug ID 4418573 for full details.
