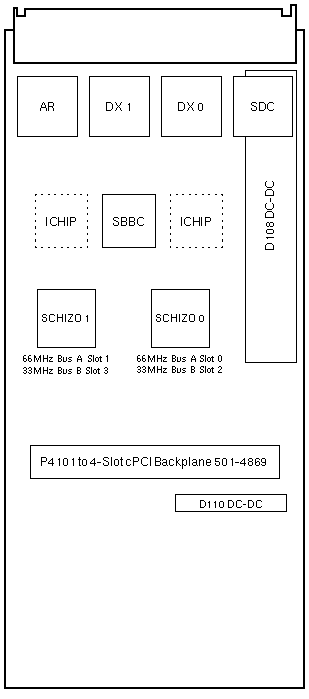

cPCI I/O Board

Sun Fire 3800-6800 Codename: Serengeti

Notes

1. The minimum operating system is Solaris 8 4/01.
2. I/O Board slots are labeled IB6 to IB9.
3. The I/O Board includes an I/O Board, cPCI Riser, and Cardcage.
4. Chassis labels include the abbreviated name and number.
5. The left to right system installation sequence is IB6, IB8, IB7, and IB9.
6. Install Filler Board 540-4446 in all empty cPCI board slots.
7. Install Filler Panel 330-2822 when servicing a cPCI I/O board slot.
8. InfoDoc 42950 provides a "ftp-only" shortcut for updating the flashprom firmware.
9. All I/O boards within a system must be at the same firmware revision.
   When replacing an I/O board, confirm that the firmware version on the replacement matches the other I/O boards.

References

1. cPCI I/O Installation Guide, 806-2950.
2. Powering On and Off Guide, 806-2956.
