Sun Fire Cabinet

Sun Fire 3800 / 4800 / 4810 / V880

SF-CAB SF-XCAB

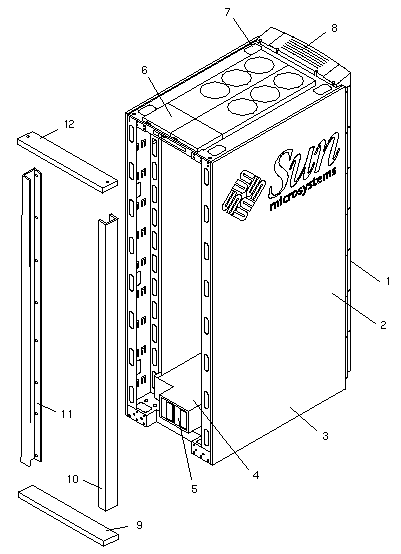

CODE PART # DESCRIPTION
1 540-3684 Curved 7-Panel Door
2 540-4613
540-4621
540-4579
340-4173
Cabinet Assembly
Cabinet Subassembly
Cabinet Subassembly
Cabinet Frame
3 340-4373 Side Panel
4 300-1335 Redundant Transfer Unit
5 300-1396 Redundant Transfer Switch
6 540-3662 Fan Tray
7 330-6728 Cosmetic Cap
8 540-3883 Frame Manager

9
10
11
12
595-5721
340-6728
540-4857
540-4857
540-4674
Cabinet Extension Option 4347
Kickplate Extension
Right Extension
Left Extension
Top Extension
NS 180-1943 Power Cord, Harting Han 6HsB to NEMA L6-30P
NS 180-1944 Power Cord, Harting Han 6HsB to IEC309
NS 180-1945 IEC320 to AMP Mate-N-Lok Power Cord, 2M
NS 180-1948 IEC320 to AMP Mate-N-Lok Power Cord, 3M
NS 230-1536 Cabinet Leveler Foot (×4)
NS 240-3379 Swivel Caster
NS 240-3580 Empty AC Transfer Switch Filler Panel
NS 240-3808 Anti-Tilt Bar Leveler Foot (×2)
NS 530-2563 Frame Manager to Patch Panel Cable
NS 530-2565 Fan Power Cable, Frame Manager to Fan Tray
NS 530-2704 Key Switch Cable, Frame Manager to RTU
NS 530-2939 IEC320 to AMP Mate-N-Lok Power Cord
NS 540-4580 Flat Rear Door

806-2942 Sun Fire Cabinet Installation Manual

PART # DESCRIPTION
330-3106 1U Filler Panel
330-3107 2U Filler Panel
330-3109 3U Filler Panel
330-3110 4U Filler Panel
330-3111 5U Filler Panel
330-3112 1U Trim Strip
330-3113 2U Trim Strip
330-3114 3U Trim Strip
330-3115 4U Trim Strip
330-3116 5U Trim Strip
330-2568 Front Left/Right Trim Panel, 60 mm × 144 mm
540-4056 Upper Left Front Trim Panel
540-4057 Upper Right Front Trim Panel

Notes:
  1. Only one Sun Fire V880 supported in this cabinet.
  2. Sun Fire V880 requires Sun Fire Cabinet Expansion Kit X4347A to allow for closing the rear door of the cabinet.

System Codenames

System Codename
Sun Fire 3800-48x0 Serengeti
Sun Fire V880 Daktari
