Standard System Interface Pin Assignments



Alarm

DB15

The alarm services port is a DB-15 male connector.
Pin Signal Pin Signal
1 NC 9 ALARM1_NC
2 NC 10 ALARM1_COM
3 NC 11 ALARM2_NO
4 NC 12 ALARM2_NC
5 SYSTEM_NO 13 ALARM2_COM
6 SYSTEM_NC 14 NC
7 SYSTEM_COM 15 NC
8 ALARM1_NO Shell CHGND

Back to Top


Audio

Audio Jack

These audio connectors use EIA standard 0.125-inch (3.5-mm) jacks.
Component Headphones Line-Out Line-In Microphone
Tip Left Channel Left Channel Left Channel Left Channel
Ring (center) Right Channel Right Channel Right Channel Right Channel
Shield Ground Ground Ground Ground

Back to Top


Ethernet

Media Independent Interface (MII)

Media Independent Interface (MII) connector is a 40-pin miniature-D MII connector.
Pin Signal Pin Signal Pin Signal Pin Signal
1 PWR 11 TX_ER 21 PWR 31 Ground
2 MDIO 12 TX_CLK 22 Ground 32 Ground
3 MDC 13 TX_EN 23 Ground 33 Ground
4 RXD<3> 14 TXD<0> 24 Ground 34 Ground
5 RXD<2> 15 TXD<1> 25 Ground 35 Ground
6 RXD<1> 16 TXD<2> 26 Ground 36 Ground
7 RXD<0> 17 TXD<3> 27 Ground 37 Ground
8 RX_DV 18 COL 28 Ground 38 Ground
9 RX_CLK 19 CRS 29 Ground 39 Ground
10 RX_ER 20 PWR 30 Ground 40 PWR

10/100 Mbps Twisted-Pair Ethernet (TPE)

Twisted-Pair Ethernet (TPE) connector is a RJ-45 type connector.
Pin Signal Pin Signal
1
TD+
(or tpe0)
5
Common Mode
Termination
2 TD-
(or tpe1)
6 RD-
(or tpe3)
3 RD+
(or tpe2)
7
Common Mode
Termination
4
Common Mode
Termination
8
Common Mode
Termination

10/100/1000 Mbps Twisted-Pair Ethernet (TPE)

Twisted-Pair Ethernet (TPE) connector is a RJ-45 type connector.
Pin Signal Pin Signal
1
Transmit/Receive Data 0 +
5
Transmit/Receive Data 2 -
2 Transmit/Receive Data 0 - 6 Transmit/Receive Data 1 -
3 Transmit/Receive Data 1 + 7
Transmit/Receive Data 3 +
4
Transmit/Receive Data 2 +
8
Transmit/Receive Data 3 -

Back to Top


FC-AL

FC-AL

The fibre channel arbitrated loop (FC-AL) is a HSSDC 8-pin connector.
Pin Signal Pin Signal
1 T_CM_FC_TX_EX_P
(Diff Data Output+ :Sun Fire V480)
5 NC
(Optical Output Disable (opt.) :Sun Fire V480)
2 Ground 6 FC_RX_EX_N
(Diff Data Input- :Sun Fire V480)
3 T_CM_FC_TX_EX_N
(Diff Data Output- :Sun Fire V480)
7 Ground
(5V Power (opt.) :Sun Fire V480)
4 NC
(Mode Fault Detection (opt.) :Sun Fire V480)
8 FC_RX_EX_P
(Diff Data Input+ :Sun Fire V480)

Back to Top


Graphics

DB13W3

The video connector is a DB13W3 connector.
Pin Signal Pin Signal Pin Signal
A1 Red 3 Sense <0> 8 Sense <1>
A2 Green 4 Ground 9 Sense <2>
A3 Blue 5 Comp Sync 10 Ground
1 Serial Read 6 Horiz Sync
2 Vert Sync 7 Serial Write

HD15

The video connector is a HD15 female connector.
Pin Signal Pin Signal Pin Signal
1 Red 6 Ground(red) 11 Ground
2 Green 7 Ground(green) 12 SDA
3 Blue 8 Ground(blue) 13 Horiz Sync
4 Ground 9 NC 14 Vert Sync
5 NC 10 Ground 15 SCL

Back to Top


IEEE 1394

IEEE 1394

The IEEE 1394 connector is a 6-pin connector.
Pin Signal
1 P1394_EX_BUSPOWER
2 Ground
3 CM_P1394_TPB1_OUT_N
4 CM_P1394_TPB1_OUT_P
5 CM_P1394_TPA1_OUT_N
6 CM_P1394_TPA1_OUT_P

Back to Top


Keyboard & Mouse

Mini DIN-8

The keyboard/mouse connector is a mini DIN-8 female connector.
Pin Signal Pin Signal
1 Ground 5 KBD_OUT_L
2 Ground 6 KDB_IN_CONN
3 +5VDC 7 KPOWERON_L
4 MOUSE_IN_CONN 8 +5VDC

Back to Top


Modem

RJ-11

The modem port connector is a RJ-11 female connector.
Pin Signal Pin Signal
1 NC 3 Tip
2 Ring 4 NC

Back to Top


Parallel

DB25

The parallel port connector is a DB-25 female connector.
Pin Signal Pin Signal Pin Signal
1 Data_Strobe_L 10 ACK_L 19 Signal Ground
2 Data0 11 BUSY 20 Signal Ground
3 Data1 12 PERROR 21 Signal Ground
4 Data2 13 SELECT_L 22 Signal Ground
5 Data3 14 AFXN_L 23 Signal Ground
6 Data4 15 ERROR_L 24 Signal Ground
7 Data5 16 INIT_L 25 Signal Ground
8 Data6 17 PAR_IN_L
9 Data7 18 Signal Ground

Back to Top


SCSI

UltraSCSI 68-pin

SCSI connector is a 68-pin miniature-D SCSI connector.
Pin Signal Pin Signal Pin Signal Pin Signal
1
Ground
18 TERMPOWER 35 DAT<12>_L 52 TERMPOWER_B
2
Ground
19 NC 36 DAT<13>_L 53 NC
3
Ground
(NC -
Ultra 80, SunBlade 1000/2000)
20 Ground 37 DAT<14>_L 54 Ground
4
Ground
21 Ground 38 DAT<15>_L 55 ATN_L
5
Ground
22 Ground 39 PAR<1>_L 56 Ground
6
Ground
23 Ground 40 DAT<0>_L 57 BSY_L
7
Ground
24 Ground 41 DAT<1>_L 58 ACK_L
8
Ground
25 Ground 42 DAT<2>_L 59 RST_L
9 Ground 26 Ground 43 DAT<3>_L 60 MSG_L
10 Ground 27 Ground 44 DAT<4>_L 61 SEL_L
11 Ground 28 Ground 45 DAT<5>_L 62 CD_L
12 Ground 29 Ground 46 DAT<6>_L 63 REQ_L
13 Ground 30 Ground 47 DAT<7>_L 64 IO_L
14 Ground 31 Ground 48 PAR<0>_L 65 DAT<8>_L
15 Ground 32 Ground 49 Ground 66 DAT<9>_L
16 Ground 33 Ground 50 TERM_DIS_L
(NC -
Ultra 80, SunBlade 1000/2000)
67 DAT<10>_L
17 TERMPOWER 34 Ground 51 TERMPOWER_B 68 DAT<11>_L

Back to Top


Serial

DB-9

The B serial port connector is a DB-9 male connector.
Pin Signal Pin Signal
1 CD 6 DSR
2 RD 7 RTS
3 TD 8 CTS
4 DTR 9 RI
5 Ground

DB-25

The A or B serial port connector is a DB-25 female connector.
Pin Signal Pin Signal Pin Signal
1 NC 10 NC
(BUTTON_XIR -
Ultra 80, SunBlade1000/2000)
19 NC
2 TXD 11 NC
(+5VDC - SunBlade1000/2000)
20 DTR
3 RXD 12 NC 21 NC
4 RTS 13 NC 22 NC
5 CTS 14 NC 23 NC
6 DSR 15 TRXC 24 TXC
7 Signal Ground 16 NC 25 NC
8 DCD 17 RTXC
9 NC
(BUTTON_POR -
Ultra 80, SunBlade 1000/2000)
18 NC

DB-25

The A/B serial port connector is a DB-25 female connector.
Pin Signal Pin Signal Pin Signal
1 NC 10 NC 19 RTS-B
2 TD-A 11 DTR-B 20 DTR-A
3 RD-A 12 DCD-B 21 NC
4 RTS-A 13 CTS-B 22 NC
5 CTS-A 14 TD-B 23 NC
6 Synchronous-A 15 TRXC-A (external) 24 TXC-A (internal)
7 Signal Ground-A 16 RD-B 25 TXC-B
8 DCD-A 17 RTXC-A
9 NC 18 RTXC-B

Mini-DIN8

The serial port connector is a mini-DIN8 female connector.
Pin Signal Pin Signal
1 [B] CTS 5 [C] TXD
2 [A] DTR 6 [F] RTS
3 [E] RXD 7 [G] DCD
4 [D] Ground 8 [H] NC

RJ-45

The serial port connector is a RJ-45 female connector.
Pin Signal Pin Signal
1 RTS 5 Ground
(RI - LX50)
2 DTR 6 RD
3 TD 7 DSR
(DCD or DSR - LX50)
4 Ground 8 CTS

Back to Top


Smart Card Reader

Smart Card Reader

The smart card reader connector is a 10-pin connector.
Pin Signal Pin Signal
1 +12VDC 6 I2C_SDA
2 Ground 7 Ground
3 Ground 8 Ground
4 I2C_SCL 9 INT_L
5 +5VDC 10 NC

Back to Top


USB

Universal Serial Bus (Type A)

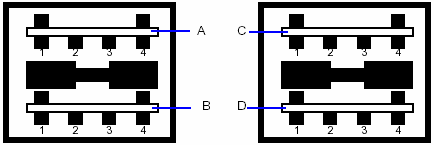

The universal serial bus connector is a USB (Type A) connector.
Pin Signal Pin Signal Pin Signal Pin Signal
A1 USB0_VCC B1 USB1_VCC C1 USB2_VCC D1 USB3_VCC
A2 CM_USB_D0_N B2 CM_USB_D1_N C2 CM_USB_D0_N D2 CM_USB_D1_N
A3 CM_USB_D0_P B3 CM_USB_D1_P C3 CM_USB_D0_P D3 CM_USB_D1_P
A4 Ground B4 Ground C4 Ground D4 Ground

Back to Top
