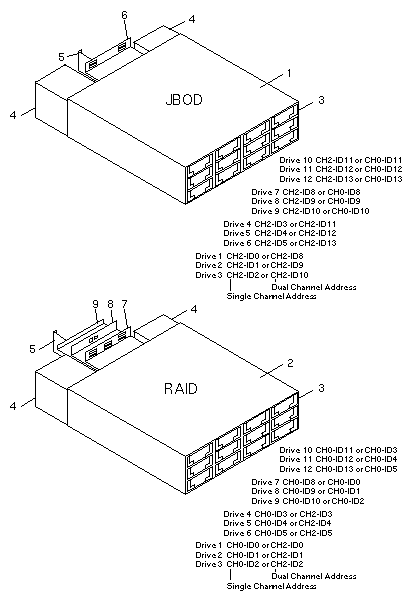

Exploded View (Click on underlined text to view components) Table Legend [F] = Field Replaceable Unit (FRU) CODE MANUFACTURING PART # DESCRIPTION 1 370-5393 [F] None None None JBOD Chassis with Midplane Assembly/FRU Chassis Connection Midplane JBOD Midplane 2 370-5524 [F] None None None RAID Chassis with Midplane Assembly/FRU Chassis Connection Midplane RAID Midplane 3 370-5399 [F] Terminator Module NS None Front Bezel Key, 82-00000909 NS None Ethernet Cable, 35-88730002 NS None DB-9M to DB-25M Adapter NS None DB-9M to DB-9F Serial Cable, 1.8M NS n/a X311L (Localized Power Cord Kit North American/Asian) * X312L (Localized Power Cord Kit Continental Europe) * X314L (Localized Power Cord Kit Swiss) * X317L (Localized Power Cord Kit U.K.) * X383L (Localized Power Cord Kit Danish) * X384L (Localized Power Cord Kit Italian) * X386L (Localized Power Cord Kit Australian) * * - 2 power cord kits need to be requested per 3310 ordered, they are not included by default.
