Sun StorEdge[tm] A3500 Array : Breakdown

A3500 Home Page Service Views Front View Front Controller View Rear View Rear Controller View Components Full Components List Array Controller Cabinet Cable Disks Disk Array Host Bus Adapter/Controller Power System Breakdown Exploded View

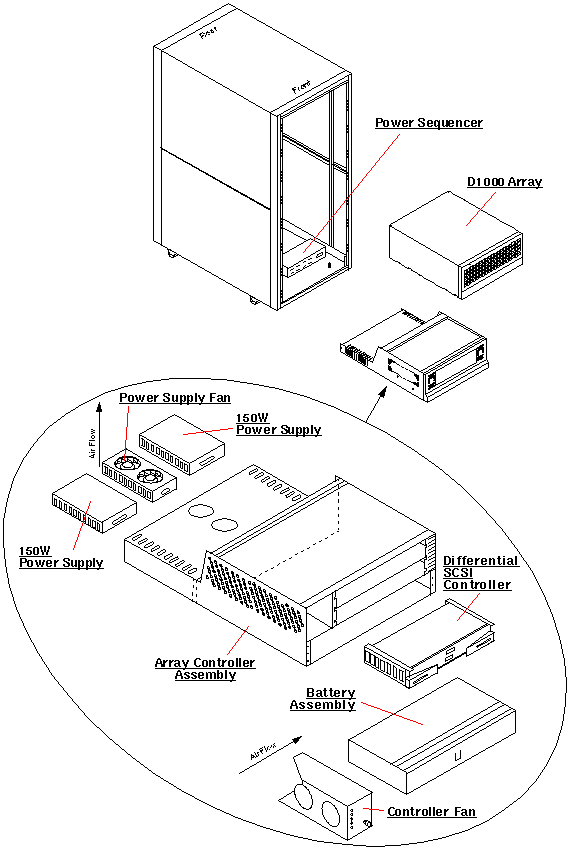

Exploded View (Click on underlined text to view components) Table Legend [F] = Field Replaceable Unit (FRU) CODE MANUFACTURING PART # DESCRIPTION NS 150-1890 [F] Differential SCSI Terminator, HD68 NS 370-2437 [F] Mounting Rail Set (370-2437-02 recommended) NS 370-2869 [F] Power Supply Chassis Assembly NS 370-3290 Empty 1.0" Disk Drive Slot Filler NS 370-3291 Empty 1.6" Disk Drive Slot Filler NS 530-1619 [F] Grounding Cable NS 540-3323 [F] Fan Tray
