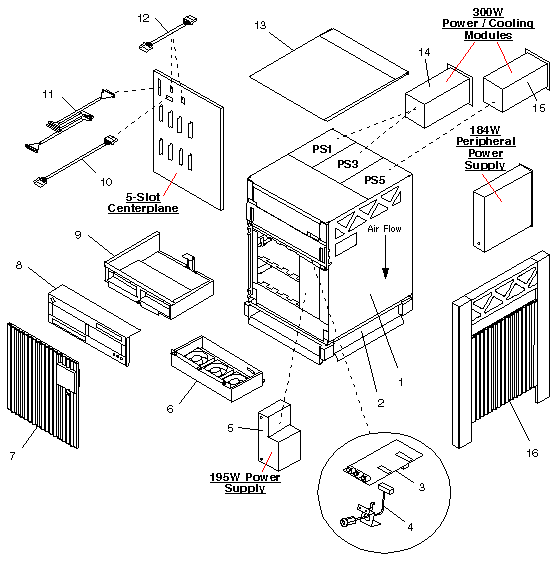

| CODE |
MANUFACTURING
PART #
|
DESCRIPTION
|
| 1 |
540-3531 |
Upper Chassis Assembly |
2
- |
540-3743
240-1806 |
Lower Base Assembly
 Caster |
| 3 |
501-2599 [F] |
LED PCB |
| 4 |
530-2148 [F] |
Keyswitch Assembly |
| 5 |
540-3815 |
Peripheral Power Supply Filler Panel |
| 6 |
540-3566 [F] |
3-Fan Tray Assembly with Fan 370-3321 |
| 7 |
540-3501 |
Front Door Assembly |
| 8 |
540-2851 |
Front Bezel with Plastic Label Cover 330-1973 |
| 9 |
340-3312 |
Peripheral Tray |
| 10 |
530-2226 [F] |
Backplane to LED PCB Cable |
| 11 |
530-2381 [F] |
Peripheral Tray SCSI Cable, 93.5 cm |
| 12 |
530-2221 [F] |
Peripheral Tray DC Cable (×2) |
| 13 |
330-2002 |
Top Cover |
| 14 |
540-2593 [F] |
Power/Cooling Module Filler Panel |
| 15 |
540-2757 [F]
540-4053 [F] |
Auxiliary Fan Assembly
Auxiliary Fan Assembly |
| 16 |
330-1993 |
Side Panel |
| NS |
240-2291 |
Door Catch |
| NS |
262-4171 |
E3500 Nameplate |
| NS |
330-2014 [F] |
Power Key |
| NS |
330-1939 |
CD-Rom Filler Bracket Bezel |
| NS |
340-3304 |
Removable Media Device Mounting Bracket |
| NS |
340-3341 |
CD-ROM Filler Bracket |
| NS |
530-1871 [F] |
RJ45 to RJ45 Cable, 4M |
| NS |
530-2093 [F] |
Shielded RJ45 to RJ45 Cable, 4M |
| NS |
540-2592 [F] |
Board Slot Filler Panel |
| NS |
540-3795 [F] |
Fiber Channel Interface Board Slot Filler Panel |
