Sun StorEdge[tm] L7 Tape Autoloader: Breakdown

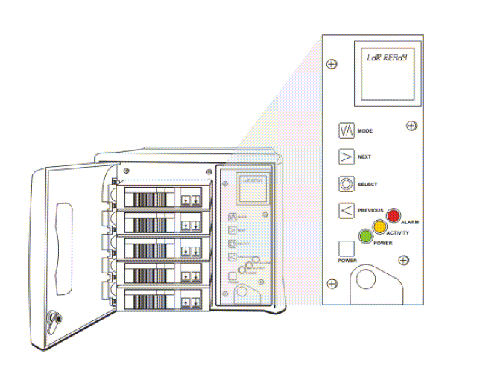

L7 Home Page Service Views Front Front Open Rear Components Full Components List Host Bus Adapter/Controller Miscellaneous Tape Drive System Breakdown Exploded View

Exploded View Table Legend [F] = Field Replaceable Unit (FRU) CODE MANUFACTURING PART # DESCRIPTION NS 595-5101 370-2188 DLT Media 10 Pack, Option SG-XMEDDLTCIV-10 DLT Media NS 595-5102 370-2189 DLT Cleaning Cartridge 10 Pack, Option SG-XMEDDLTCL-10 DLT Cleaning Cartridge NS None AC Power Cord, ADIC 60-9000-02 NS None Type IV Tape, Fuji 26112088, ADIC 39-1064-01 NS None Cleaning Tape III, ADIC 39-1048-01 NS None Passive Terminator, ADIC 61-1140-01 NS None Barcode Reader Cover, ADIC 18-0147-01 NS None Barcode Label 00-099, ADIC 10-1338-01
