| CODE |
MANUFACTURING
PART #
|
DESCRIPTION
|
|

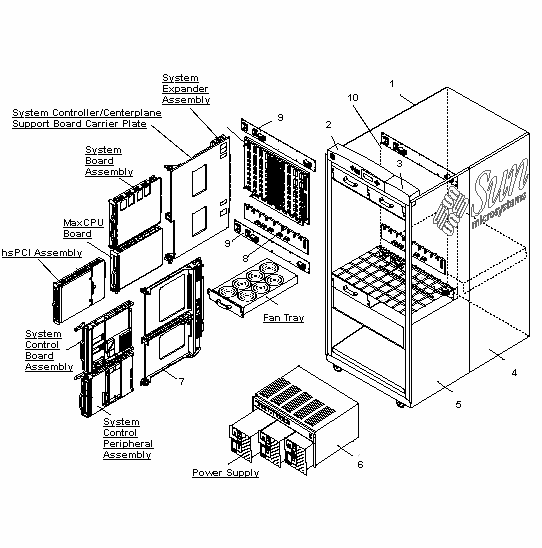

1
|
595-2508 |
Sun Fire 15K Assembly (replaced 599-2264) |
|
2
|
540-3883
[F] |
Top Cap / Frame Manager |
|
3
|
540-4390 [F] |
Top Cap / Frame Manager Extension |
|
4
|
340-7193 [F] |
Sun Side Panel (replaced 340-5107) |
|
5
|
340-7192 [F] |
Logo Side Panel (replaced 340-6442) |
|
6
|
370-4055 [F] |
Power Supply Chassis |
|
7
|
501-6029
 501-5378 [F]
|
Centerplane Support Board Assembly
Centerplane Support Board
FRU |
|
8
|
501-5183 [F] |
Power Centerplane |
|
9
|
501-5271 [F] |
Fan Backplane |
| 10 |
501-4936
[F]
 540-5150 |
Sun Fireplane
Interconnect
Power Cabinet Assembly (replaced
540-4812) |
| NS |
180-1943 [F] |
AC Power Cable, Domestic (Option X3800A), L6-30P (cord
up) |
| NS |
180-1944 |
AC Power Cable, International (Option X3848A), IEC 309
(cord up) |
| NS |
180-1954 [F] |
Power Cord for 72 inch StorEdge Expansion Cabinet, US
(Option X3858A), L6-30P (cord down) |
| NS |
180-1955 |
Power Cord for 72 inch StorEdge Expansion Cabinet, International
(Option X3859A), IEC 309 (cord down) |
| NS |
250-1639 [F] |
18 in. lb Preset Torque Screwdriver |
| NS |
250-1640 [F] |
Magnetic Screwdriver with 7 1/4" Shaft for Fan Backplane |
| NS |
340-4726 |
Chassis |
| NS |
340-5873 |
Left Trim Panel |
| NS |
340-5874 |
Right Trim Panel |
| NS |
340-5901 |
DC Cover |
| NS |
340-6021 |
Top, Rear Trim Panel |
| NS |
340-6452 |
Lower Trim Panel |
| NS |
340-6454 |
Top, Front Trim Panel |
| NS |
530-2799 |
Ethernet Cable |
| NS |
530-2817 |
LED Cable |
| NS |
530-2920 [F] |
System Control Peripheral Board Power Cable |
| NS |
530-2956 [F] |
System Controller CPU Cable, mini-DIN to DB25 RS232 cable
used to connect the System Controller to a Sun Workstation. |
| NS |
530-3045 [F] |
System Control Peripheral Board SCSI Cable |
| NS |
540-4166 [F] |
I/O FillerPanel (used as required), Option X4615A |
| NS |
540-4201 [F] |
CPU Filler Panel (use as required), Option X4610A |
| NS |
n/a |
Sun Fire 12K to Sun Fire 15K Hardware Upgrade Kit includes
nine Expander Boards and installation service (Option C-F12K-F15K-UPGRD) |
| NS |
565-1638
530-2766 [F]
530-2771 [F]
530-2772 [F]
530-2773 [F]
530-2781
530-2767 [F]
530-2768 [F]
530-2769 [F]
530-2770 [F]
530-2757 [F]
530-2758 [F]
530-2793 [F]
530-2794 [F]
530-2795 [F]
530-2796 [F]
530-2854 [F]
530-2855 [F]
530-2856 [F]
530-2857 [F]
530-2858 [F]
530-2859 [F]
|
Cable Kit
Fan Power Cable
48Vdc Power Cable
48Vdc Crossover Cable
I2C Cable
Cable Kit
Upper Front Fan I2C Cable
Lower Front Fan I2C Cable
Upper Rear Fan I2C Cable
Lower Rear Fan I2C Cable
Front Expander Power Cable
Rear Expander Power Cable
Front Control 0 Cable
Front Control 1 Cable
Rear Control 0 Cable
Rear Control 1 Cable
Front Power Control Cable
Rear Power Control Cable
Internal Top Cap / Frame
Manager Power Cable
External Top Cap / Frame
Manager Power Cable
Internal RS232 Cable
External RS232 Cable |
