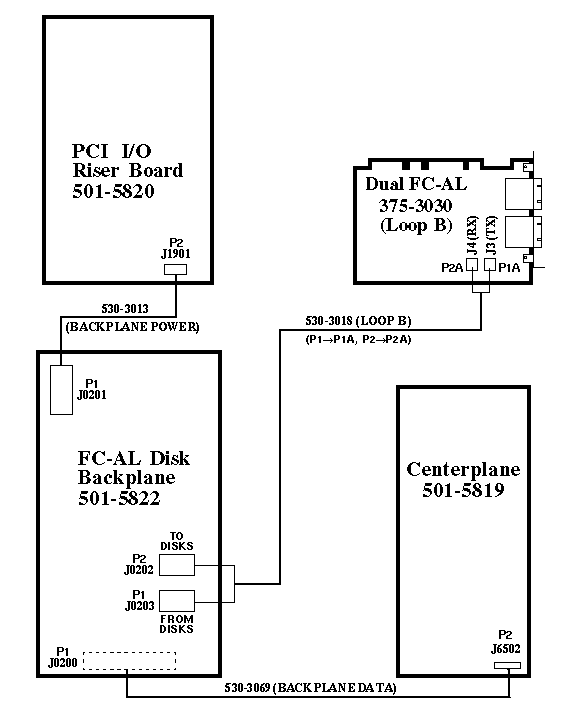

FC-AL Disk Backplane with Dual Loop (A and B)

Note: When LoopB is configured, the external Port 1 of X6727A (375-3030) card cannot be used for additional external storage. This would extend the internal loop B outside of the box, which is not supported. Making use of the second external port off X6727A is supported.

NOTE: Right click and select "View Image" to get just the image for printing and saving.

[Back to Top]

Cable	Connection Points
FCAL Power Cable Part # 530-3013	Origin: P2 on PCI Riser Board at J1901 Destination: P1 on FCAL Backplane at J0201 Note: Cable must be routed under Fan Tray 1.
FCAL Data Cable Part # 530-3069	Origin: P2 on Centerplane at J6502 Destination: P1 on FCAL Backplane at J0200 Note: Route cable above the system control switch/power button cable.
FCAL Loop B Cable Part # 530-3018 Option X9713A	Origin: On Crystal+ card: P1A to J3(TX), P2A to J4(RX) Destination: On Disk Backplane: P1 to J0203, P2 to J0202 Note: Route Loop B cable above the Fan Tray and other PCI cards.
