Netra[tm] st D1000 Storage Array

Codename: Avalanche
ARY145A-36GAC   1 ARY145A-36GDC   1
AC Input Power
4 9.1GB 10000 RPM Disks		 DC Input Power
4 9.1GB 10000 RPM Disks
ARY153A-72GAC   2 ARY153A-72GDC   2
AC Input Power
4 18.2GB 10000 RPM Disks		 DC Input Power
4 18.2GB 10000 RPM Disks
ARY173A-145GAC   3 ARY173A-145GDC   3
AC Input Power
4 36.4GB 10000 RPM Disks 540-4689		 DC Input Power
4 36.4GB 10000 RPM Disks 540-4689
ARY173B-145GAC   4 ARY173B-145GDC   4
AC Input Power
4 36.4GB 10000 RPM Disks 540-5451		 DC Input Power
4 36.4GB 10000 RPM Disks 540-5451



1 The 9GB st D1000 last order date was January 2000.
2 The 18GB st D1000 was reclassified NEBS Level 2 in October 2001.
3 The 36GB st D1000 was reclassified NEBS Level 2 in October 2001.
4 The NEBS Level 3 36GB st D1000 requires drive assembly 540-5451.

Table Legend
[F] = Field Replaceable Unit (FRU)

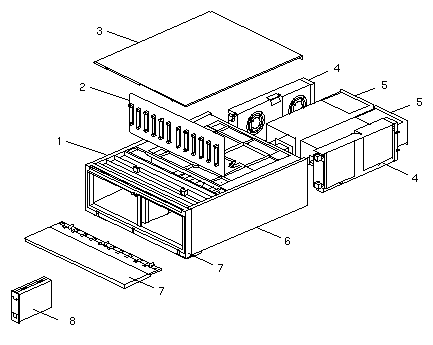

CODE PART # DESCRIPTION
1
1
1		 540-3989
540-3995
540-4001		 12-Drive AC Chassis Assembly
12-Drive DC Chassis Assembly
Empty 12-Drive Chassis Assembly
2 501-4440 [F] 12-Slot SCSI Disk Backplane
3 340-5432 Top Cover
4 540-3999 [F] Fan Tray
5
5
5		 300-1340 [F]
300-1428 [F]
300-1498 [F]		 360 Watt AC Input Power Supply
360 Watt DC Input Power Supply, Phoenix Connector
360 Watt DC Input Power Supply, Wago Connector
6 340-5433 Bottom Cover
7 540-3990 Front Door Assembly
8 370-3760
540-3881 [F]
540-4401 [F]
540-4178 [F]
540-4689 [F]
540-4520 [F]
540-5451 [F]		 Empty 1.0" Disk Drive Slot Filler
9.1GB 10000 RPM Disk Drive FRU, NEBS Level 3
18.2GB 10000 RPM Disk Drive FRU, NEBS Level 3
18.2GB 10000 RPM Disk Drive FRU, NEBS Level 2
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 3
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 2
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 3
NS 150-1890 [F] Differential Terminator, HD68
NS 240-2690 A1000/D1000 Key
NS 250-1454 Air Filter
NS 375-0008 [F] Differential SCSI Controller Board
NS
NS		 530-2729 [F]
530-2751		 L90° HD68 to VHDCI68 SCSI Cable, 2M (X992A)
L90° HD68 to VHDCI68 SCSI Cable, 4M (X993A)
NS
NS		 530-2846 [F]
530-2847		 R90° HD68 to VHDCI68 SCSI Cable, 2M (X959A)
R90° HD68 to VHDCI68 SCSI Cable, 4M (X947A)
NS
NS
NS		 595-5112
250-1454
340-5439		 EMI Shield and Air Filter, Option 994
Foam Air Filter
EMI Shield
NS
NS		 595-5350
340-5435		 19-inch Rack Mount Kit
Mounting Bracket (×2)
NS
NS		 595-5117
340-4463		 23-inch and 24-inch Rack Mount Kit, Option 6907
Mounting Bracket (×2)
NS
NS		 595-5116
340-5559		 600 mm Rack Mount Kit, Option 6909
Mounting Bracket (×2)
