Sun Enterprise[tm] 250 Server - System Breakdown

E250 Home Page
Service Views
Front
Front Open
Left Side
Rear
Components
Full Components List
Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
System Breakdown
Exploded View

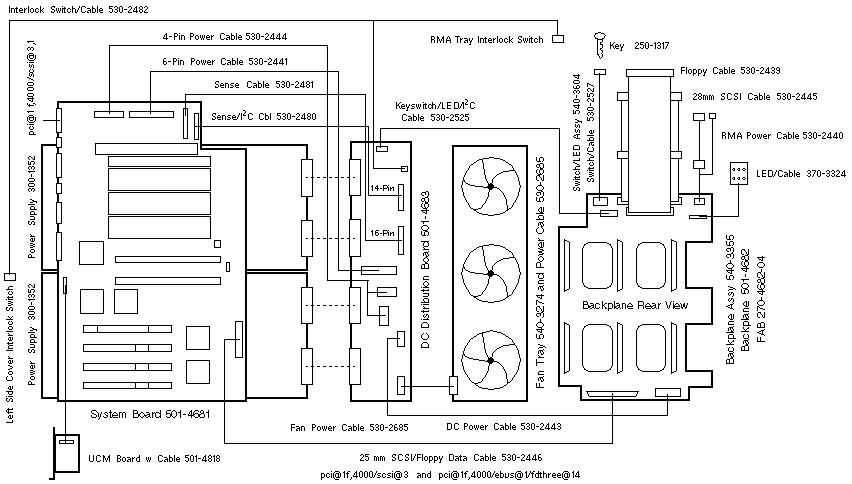

Wiring Diagram
Wiring Diagram
