Sun Enterprise[tm] 250 Server - Full Components List

Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM

Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

Socket	Manufacturing Part #	Description	Patch
Boot PROM
U2703	525-1718	Boot Flash PROM	106503
U4401	525-1724	Remote System Control (RSC) Flash PROM	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Communication
X1155A	605-1611	370-2728 [F]	High Speed Serial Interface (HSI/P) 2.0	n/a
X1157A	605-1623	501-3028 [F]	SunATM-155/MFiber 4.0	n/a
X1158A	605-1624	501-3027 [F]	SunATM-155/UTP 4.0	n/a
X1159A	605-1625	501-3029 [F]	SunATM-622/MFiber 4.0	n/a
X2156A	605-1644	375-0100 [F]	Serial Asynchronous Interface (SAI/P) 3.0	n/a
X6762A	595-6296	375-3089 [F]	Crypto Accelerator 1000	n/a
n/a	n/a	501-4818 [F]	Remote System Control (RSC)	n/a
X1035A [S]	605-1583	370-2811 [F]	FDDI/P SAS 1.0	n/a
X1036A [S]	605-1584	370-2812 [F]	FDDI/P DAS 1.0	n/a
X1039A [S]	605-1590	375-0001 [F]	Token Ring Interface (TRI/P) 1.0	375-0073 [F]
X1040A [S]	605-1581	370-2728 [F]	High Speed Serial Interface (HSI/P) 1.0	n/a
X1041A [S]	605-1582	370-2810 [F]	Serial Asynchronous Interface (SAI/P) 1.0	375-0100 [F]
X1066A [S]	605-1599	501-3028 [F]	SunATM-155/MFiber 3.0	n/a
X1067A [S]	605-1598	501-3027 [F]	SunATM-155/UTP 3.0	n/a
X1068A [S]	605-1600	501-3029 [F]	SunATM-622/MFiber 3.0	n/a
X1133A [S]	595-5655	375-0130 [F]	Crypto Accelerator I	n/a
X1152A [S]	605-1608	370-2811 [F]	FDDI/P SAS 2.0	n/a
X1153A [S]	605-1607	370-2812 [F]	FDDI/P DAS 2.0	n/a
X1154A [S]	605-1615	375-0001 [F]	Token Ring Interface (TRI/P) 4.0	375-0073 [F]
X1156A [S]	605-1613	370-2810 [F]	Serial Asynchronous Interface (SAI/P) 2.0	375-0100 [F]
X2154A [S]	605-1643	375-0073 [F]	Token Ring Interface (TRI/P) 5.0	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #	Previous Part #
CPU Module
X1194A	595-5147	501-5445 [F]	400MHz UltraSPARC II Module	n/a	501-5237 [F]
X1190A [S]	595-4893	501-4857 [F]	250MHz UltraSPARC II Module	n/a	n/a
X1191A [S]	595-4894	501-4849 [F]	300MHz UltraSPARC II Module	n/a	n/a

Option #	Top Level Part #	Assembly FRU	Manufacturing Part #	Description	Substitute Part #
Disks
X5242A	595-5496	540-4521 [F] Spud Bracket FRU w/ 1" Bracket 540-3024	390-0051	Fujitsu MAJ3364MC (36.4GB - 10000 RPM)	n/a
			390-0050 [F]	Seagate ST336704LC (36.4GB - 10000 RPM)	390-0069 [F]
			390-0065	Fujitsu MAN3367MC (36.4GB - 10000 RPM)	n/a
			390-0069 [F]	Seagate ST336605LC (36.4GB - 10000 RPM)	390-0050 [F]
			390-0109 [F]	Seagate ST336607LC (36.4GB - 10000 RPM)	n/a
X5237A [S]	595-5198	540-4177 [F] Spud Bracket FRU w/ 1" Bracket 540-3024	390-0006	Fujitsu MAG3182LC (18.2GB - 10000 RPM)	n/a
			390-0002 [F]	Seagate ST318203LC (18.2GB - 10000 RPM)	390-0038 [F] 390-0060 [F]
			390-0038 [F]	Seagate ST318404LC (18.2GB - 10000 RPM)	390-0002 [F] 390-0060 [F]
			390-0043	Fujitsu MAJ3182MC (18.2GB - 10000 RPM)	n/a
			390-0048	IBM DDYS-T18350 (18.2GB - 10000 RPM)	n/a
			390-0066	Fujitsu MAN3184MC (18.2GB - 10000 RPM)	n/a
			390-0085 [F]	Seagate ST318305LC (18.2GB - 10000 RPM)	390-0002 [F] 390-0038 [F] 390-0060 [F]
X5234A [S]	595-4939	540-3881 [F] Spud Bracket FRU w/ 1" Bracket 540-3024	370-3649	Seagate ST39102LC (9.1GB - 10000 RPM)	n/a
			390-0005	Fujitsu MAG3091LC (9.1GB - 10000 RPM)	390-0009 [F]
			390-0009 [F]	Seagate ST39103LC (9.1GB - 10000 RPM)	390-0005 390-0037 [F]
			390-0037 [F]	Seagate ST39204LC (9.1GB - 10000 RPM)	390-0005 390-0009 [F]
X5214A [S]	595-4082	540-2938 [F] Spud Bracket FRU w/ 1" Bracket 540-3024	370-2367 [F]	Seagate ST34371WC (4.2GB - 7200 RPM)	370-2368 [F]
			370-2809	Quantum VK45J05 (4.2GB - 7200 RPM)	370-2368 [F]
			370-3412 [F]	Fujitsu MAB3045SC (4.2GB - 7200 RPM)	370-2368 [F]
			370-3403	IBM DDRS-34560 (4.2GB - 7200 RPM)	n/a
X5229A [S]	595-4716	540-3704 [F] Spud Bracket FRU w/ 1" Bracket 540-3024	370-3413 [F]	Fujitsu MAB3091SC (9.1GB - 7200 RPM)	370-2369 370-2370 [F]
			370-3404	IBM DDRS-39130 (9.1GB - 7200 RPM)	n/a
			370-3595 [F]	Seagate ST39173WC (9.1GB - 7200 RPM)	370-3404 370-3413 390-0004 [F]
			390-0004 [F]	Fujitsu MAE3091LC (9.1GB - 7200 RPM)	370-3404 370-3595 [F]
			390-0007	IBM DNES-309170 (9.1GB - 7200 RPM)	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Ethernet
X1033A	595-4498	501-5019 [F]	SunFastEthernet (FE/P)	501-4359 [F]
X1034A	605-1594	501-5406 [F]	Sun Quad FastEthernet (QFE/P)	501-4366 [F]
X1141A	605-1601	501-4373 [F]	Gigabit Ethernet 2.0 (GBE/P)	n/a
X1046A	620-0005	380-0001 [F]	SunSwitch Gigabit Ethernet Switch	n/a
X1150A	595-5812	501-5902 [F]	Sun GigaSwift Ethernet UTP	n/a
X1151A	595-5773	501-5524 [F]	Sun GigaSwift Ethernet MMF	n/a
X467A [S]	595-3780 [F]	n/a	MII to AUI Converter	n/a
X1044A [S]	605-1591	375-0002 [F]	Gigabit Ethernet 1.0 (GBE/P)	n/a
X2069A [S]	595-5414	501-5426 [F]	Gigabit Ethernet FC-AL/P	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Fibre Channel
X6727A	595-5853	375-3030 [F]	PCI Dual FC Network Adapter+	n/a
X6746A	595-5816	540-4372 [F]	StorEdge Network FC Switch-8	n/a
X6767A	595-6425	375-3102 [F]	2GB PCI Single FC Network Adapter	n/a
X6768A	595-6426	375-3108 [F]	2GB PCI Dual FC Network Adapter	n/a
X6799A	595-5830	375-3019 [F]	PCI Single FC Host Adapter	n/a
X6729A [S]	595-4685	375-0040 [F]	Single Loop PCI FC-AL Host Adapter (FC100/P)	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Graphics
X3668A	595-5146	370-3753 [F]	PGX32 8/24-Bit Color Frame Buffer	n/a
X3768A	605-4639	370-4362 [F]	PGX64 8/24-Bit Color Frame Buffer	n/a
X3660A [S]	595-4380	370-2256 [F]	PGX 8-Bit Color Frame Buffer	370-3753 [F]

Socket	Manufacturing Part #	Component Type	Host ID
IDPROM
U2706	525-1726 [F]	48T59 NVRAM	80xxxxxx

Option #	Top Level Part #	Manufacturing Part #	Option Description	Substitute Part #
Memory
X7003A	595-3812	501-2480 [F] (64MB)	128 MB (2 × 64MB DIMMS)	n/a
X7004A	595-3813	501-3136 [F] (128MB)	256 MB (2 × 128MB DIMMS)	n/a
X7043A	595-5409	501-5691 [F] (64MB)	128 MB (2 × 64MB DIMMS)	n/a
X7001A [S]	595-3810	501-2479 [F] (16MB)	32 MB (2 × 16MB DIMMS)	n/a
X7002A [S]	595-3811	501-2622 [F] (32MB)	64 MB (2 × 32MB DIMMS)	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Miscellaneous
X2132A	605-4646	375-3051 [F]	SunPCi IIpro 733MHz coprocessor card	n/a
X7042A	595-5694	370-4294 [F]	SunPCi II 128MB memory expansion	n/a
X7044A	595-5695	370-4295 [F]	SunPCi II 256MB memory expansion	n/a
X7045A	595-6010	370-4430 [F]	SunPCi IIpro 512MB memory expansion	n/a
X9691A	n/a	595-4953	Enterprise 250 Deskside to Rack Mount Kit	n/a
X9696A	n/a	595-4883	Enterprise 250 Rack Mount to Deskside Kit	n/a
X9604A	595-4552	540-3357	Enterprise 250 Caster Assembly	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Power - DC
X9683A	595-4869	300-1352 [F]	Lucent 360 Watt Power Supply	n/a
n/a	n/a	501-4683 [F]	DC Power Distribution Board	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Removable Media
X6005A	595-4997	370-2730 [F]	Triple Density Floppy	n/a
X6168A	595-5558	390-0025 [F]	10X DVD-ROM (standard configuration)	n/a
X6286A	595-4379	370-2376 [F]	12-24 GB 4 mm DDS-3 Tape Drive	n/a
X6295A	595-5431	390-0028 [F]	20-40GB 4 mm DDS-4 Tape Drive	n/a
X6107A [S]	595-4568	370-3280 [F]	4-8 GB 1/4" SLR Tape Drive	n/a
X6213A [S]	595-4381	370-2882 [F]	7-14 GB 8 mm Tape Drive	n/a
n/a	n/a	370-3416 [F]	SunCD 32	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
SCSI
X1032A	595-4258	501-5656 [F]	Single-Ended Ultra/Wide SCSI (SunSwift PCI)	501-2741 [F]
X2222A	595-5624	501-5727 [F]	Dual FastEthernet + Dual SCSI PCI Adapter	n/a
X6540A	595-4399	375-0005 [F]	Dual Single-Ended Ultra/Wide SCSI (PCI)	n/a
X6541A	595-4414	375-0006 [F]	Dual Differential Ultra/Wide SCSI (PCI)	n/a
X6758A	595-5945	375-3057 [F]	PCI Dual Ultra3 SCSI Host Adapter *	n/a
n/a	n/a	540-3355 501-4682 [F]	Disk Drive Backplane Assembly 6-Slot SCSI Disk Backplane	n/a
X6542A [S]	595-5074	375-0078 [F]	SCSI RAID Controller (SRC/P)	n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.

Option #	Manufacturing Part #	Description	Substitute Part #
System Board
n/a	501-4681 [F]	0MB FRU	501-5440 [F]
n/a	501-5440 [F]	0MB FRU (FAB 270-4681-07)	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

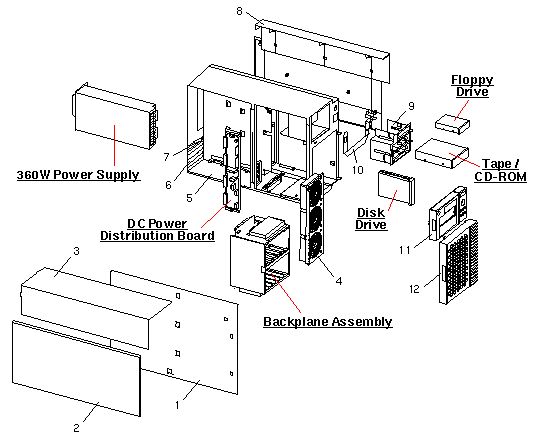

Exploded View

Table Legend

[F] = Field Replaceable Unit (FRU)

CODE	MANUFACTURING PART #	DESCRIPTION
1	540-3453	Left Side Cover
2	330-2152	Purple Lower Left/Right Side Cover
3	330-2137	Light Grey Upper Left Side and Top Cover
4	540-3274 [F]	3-Fan Fan Assembly
5	340-4070	Chassis
6	340-3256	PCI Filler Panel
7 -	501-4818 [F] 530-2526	Remote System Control Board and Cable Remote System Control Cable
8	330-2138	Light Grey Upper Right Side and Top Cover
9 -	540-3351 340-4072	RMA Assembly Removable Media Bracket
10 - -	540-3604 [F] 370-3324 530-2527	Keyswitch and LED Assembly with Cables LED and Cable Assembly Keyswitch Assembly
11	540-3273 [F]	Front Top Bezel Assembly
12	540-3352 [F]	Front Bottom Door Assembly
NS	250-1317 [F]	Key
NS	330-2399 [F]	5 1/4" Device External Filler Panel
NS	330-2400 [F]	3 1/2" Device External Filler Panel
NS	330-2522	Foot (Option 9605)
NS	340-4067	3 1/2" Device Internal Filler Panel
NS	340-4068	5 1/4" Device Internal Filler Panel
NS	340-4416 [F]	Power Supply Filler Panel
NS	530-1871 [F]	RJ45 to RJ45 Cable, 4M
NS	530-2068 [F]	DB25 to 36-Pin Centronics Parallel Cable, 5M
NS	530-2093 [F]	Shielded RJ45 to RJ45 Cable, 4M
NS	530-2439 [F]	Backplane to Floppy Data Cable
NS	530-2440 [F]	Backplane to RMA Tray DC Power Cable
NS	530-2441 [F]	CPU to DC Distribution 6-Pin Power Cable
NS	530-2443 [F]	Backplane to DC Distribution Power Cable
NS	530-2444 [F]	CPU to DC Distribution 4-Pin Power Cable
NS	530-2445 [F]	Backplane to RMA SCSI Device Data Cable
NS	530-2446 [F]	Backplane to System Board SCSI/Floppy Cable
NS	530-2480 [F]	CPU to DC Distribution/I²C 14-Pin Sense Cable
NS	530-2481 [F]	CPU to DC Distribution 16-Pin Sense Cable
NS	530-2482 [F]	Interlock Cable
NS	530-2502 [F]	DC Extension Cable for SLR Tape Drive
NS	530-2525 [F]	Backplane to DC Distribution Key/LED/I²C Cable
NS	530-2685 [F]	Fan Tray to DC Distribution Power Cable
NS	540-2540 [F]	Lockbox
NS	540-3357	Castor Assembly, Option 9604
NS	595-3780 [F]	MII to AUI Converter (requires AC power)
