Sun StorEdge[tm] L700 Tape Library: Full Components List

Cable
Host Bus Adapter/Controller
Switch
Tape Drive
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Cable
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X979A 595-2920 530-1886 [F] External SCSI Cable, HD68 to HD68, 12M n/a
X3831A 595-4695 530-2455 [F] External SCSI Cable, HD68 to VHDC UltraSCSI, 10M n/a
Host Bus Adapter/Controller
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1065A 595-4187 370-2443 [F] Differential Ultra/Wide SCSI (UDWIS/S) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter + (use for 9840 FC drives) n/a
X6749A 595-5716 375-0119 [F] Dual Differential Ultra SCSI, cPCI n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter (use for 9840 FC drives) n/a
SG-FCE-6460N 595-6493 380-0665 * JNI 6460 PCI 2Gb Host Adapter n/a
SG-XLIBFCCARD 595-5898 380-0448 Upgrade card to move L180 & L700 from SCSI to native fibre n/a
* - FRU must be ordered through StorageTek, this is not a Sun stocked part.
Switch
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
SG-SNFCS44 595-6497 380-0669 Silkworm 2800 16 Port 1Gb Switch n/a
SG-XSWBRO3200 595-6812 370-5769 [F] Brocade Silkworm 3200 8 Port FC Switch n/a
SG-XSBRO3800 595-6814 370-4949 [F] Brocade Silkworm 3800 16 Port FC Switch, option comes with rack mount kit n/a
SG-XSWBRO12000-32P 595-6807 370-5748 Brocade Silkworm 12000 Switch with 32 Ports, option comes with rack mount kit n/a
SG-XSWBRO12000-64P 595-6808 370-4749 Brocade Silkworm 12000 Switch with 64 Ports, option comes wth rack mount kit n/a
SG-XSWBRO12000-MOD 595-6823 370-5449 [F] Brocade Silkworm 12000 16 Port FC Switch Module n/a
Tape Drive
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
SG-XLIB9840-DRV 595-5265 380-0315 9840 20GB Tape Drive Assembly n/a
SG-XTAPDLT8-DRV 595-5893 380-0442 DLT 8000 40 GB Tape Drive Assembly n/a
SG-XTAP9840FC-DRV 595-5895 380-0443 9840FC Fibre Channel Tape Drive n/a
SG-XTAP9840BFC-DRV 595-6353 380-0555 L180/L700 9840B Fibre Channel Tape Drive n/a
SG-XTAPLTO-DRV 595-6195 380-0483 L180/L700 LTO Tape Drive n/a
SG-XTAPLTOFC 595-6754 380-0793 L180/L700 LTO Fibre Channel Tape Drive * n/a
SG_XTAPSDLT320-DRV 595-6845 380-0808 L180/L700 SDLT320 Tape Drive n/a
SG-XTAPDLT7-DRV [S] 595-5461 380-0328 DLT[tm] 7000 35 GB Tape Drive Assembly n/a
* - The LTO FC tape drive requires switch SG-SNFCS44 and HBA SG-FCE-6460N. Solaris 9 is not supported with this tape drive.
Note: Information about ordering bar code labels can be found in the L700 Just the Facts document, page 10.

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

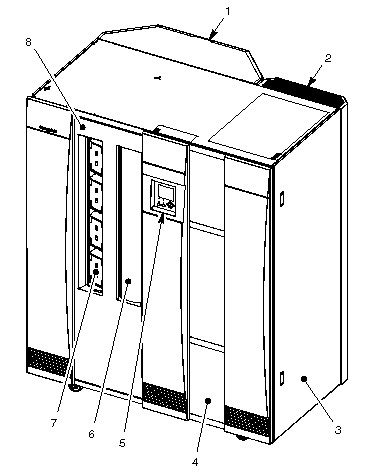

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
TOP LEVEL
PART #
MANUFACTURING
PART #
DESCRIPTION
1 n/a n/a Expansion Frame
2 n/a n/a Rear Door
3 n/a n/a Tape Drive Access Door
4 n/a n/a Right Front Door
5 n/a n/a Operator Panel
6 n/a n/a Optional Cartridge Access Panel (CAP)
7 n/a n/a Standard Cartridge Access Panel (CAP)
8 n/a n/a Left Front Door
NS 595-5101 370-2188 DLT Compact IV Tape 10 Pack (Option SG-XMEDDLTCIV-10)
NS 595-5102 370-2189 DLT Cleaning Tapes 10 Pack (Option SG-XMEDDLTCL-10)
NS 595-5262 380-0312 L700 Additional Drive and Redundant Power Supply (Option SG-XLIBL700-2POWER)
NS 595-5263 380-0313 L700 Expansion Door with 294 Cartridge Slots (Option SG-XLIBL700-DOOR)
NS 595-5264 380-0314 L700 Cartridge Access Port with 20 Cartridge Load Port (Option SG-XLIBL700-CAP)
NS 595-5266 380-0316 Media Starter Kit (Option SG-XMED9840-STRKIT)
NS 595-5267 370-4032 9840 Media 20 Pack (Option SG-XMED9840-20)
NS 595-5268 370-4033 9840 Cleaning Cartridge 5 Pack (Option SG-XMED9840CL-5)
NS 595-5292 370-4034 9840 Media Magazine (Option SG-XMEDCART-1MAG)
NS 595-5775 380-0420 L700 enclosure, base configuration, 228 Slots (Option SG-XLIBL700-BASE3)
NS 595-5776 380-0421 168 slot expansion kit to get from 228 to 396 slots; includes 168 cartridge cells, cartridges sold separately (Option SG-XCTXP180A-L700)
NS 595-5967 380-0455 Library monitoring software; 1 monitor kit: enabling key and CD-ROM manual (Option SG-XMONLIBSWL700)
NS 595-5968 n/a L700/L180 Internal Mount Kit for Sun switches (Option SG-XLIBRAIL-KIT)
NS 595-6169 390-0087 Ten (10) LTO 100 GB cartridges (Option SG-XMEDLTO100GB-10)
NS 595-6170 390-0088 Ten (10) LTO Cleaning Cartridges (Option SG-XMEDLTOSEACL-10)
NS 595-6695 390-0134 Ten (10) LTO Universal cleaning cartridges (Option SG-XMEDLTOUNVCL-10)
NS 595-6734 390-0135 Ten (10) SDLT320 160 GB data Cartridges (Option SG-XMEDSDLT220-10)
NS 595-6789 390-0140 Ten (10) SDLT320 Cleaning Cartridges (Option SG-XMEDSDLTCL-10)
Note: There are no Sun FRU part numbers for the L700.
