Netra[tm] t 1125 Server

N03

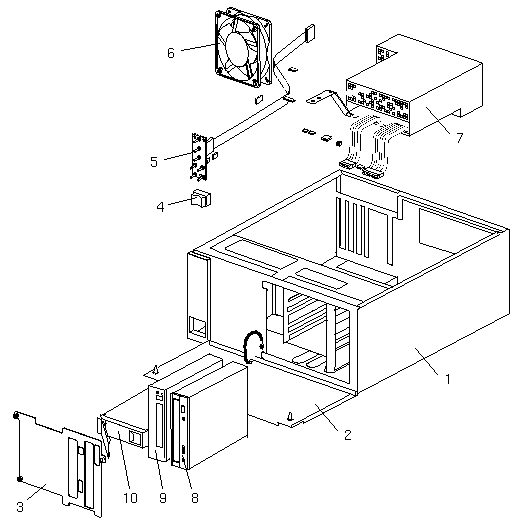

4-Slot PCI Logic Enclosure

Table Legend

[F] = Field Replaceable Unit (FRU)

CODE	PART #	DESCRIPTION
1 - - - - - 2 - - 3 4 5 - - 6	540-3830 None 370-3273 540-3831 530-2684 [F] 540-3810 540-3491 250-1392 [F] 530-2536 540-3855 530-2514 [F] 540-3605 [F] 501-4670 [F] 530-2490 540-3514 [F]	Chassis Assembly with 2 Removable Media Bays Chassis PCI Filler Panel Disk Drive Bay Assembly (1.0" or 1.6" height) SCSI Cable and Backplane Assembly Top Cover Front Panel Assembly Fan Filter Ground Strap Drive Cover Power Switch LED PCB/Cable Assembly LED Module LED Cable 12V Fan Assembly
7 - -	540-3916 300-1406 [F] 540-3848	AC Power Supply Assembly 325 Watt AC Input Power Supply Power Supply Bracket
8 8 8	370-2816 [F] 370-3415 [F] 390-0025 [F]	12x CD-ROM, 1.6" Height 32x CD-ROM, 1.6" Height 10x DVD-ROM, 1.6" Height
9	370-2377 [F]	12-24GB 4 mm DDS-3 Tape Drive
10 10 10 10 10	540-3704 [F] 540-3719 [F] 540-4177 [F] 540-4521 [F] 540-4919 [F]	9.1GB 7200 RPM Disk Drive Assembly/FRU 18.2GB 7200 RPM Disk Drive Assembly/FRU 18.2GB 10000 RPM Disk Drive Assembly/FRU 36.4GB 10000 RPM Disk Drive Assembly/FRU 36.4GB 10000 RPM NEBS Disk Drive Assembly/FRU
NS	262-2662	Logo
NS	262-0533	Nameplate
NS	370-3696	Power Supply to Removable Media Cable
NS	501-4450 [F]	0MB Ultra 60 System Board
NS NS	501-4196 [F] 501-4849 [F]	300MHz UltraSPARC II Module 300MHz UltraSPARC II Module (Option X1191A)
NS NS	501-5682 [F] 501-6209 [F]	440MHz UltraSPARC II Module (Option X1197A) 440MHz UltraSPARC II Module
NS NS	501-4669 [F] 501-5949 [F]	Alarm Module Alarm Module
NS	501-3809	System Board Bracket with Fan
	805-6043 805-6804	Netra t 1125 Service Manual (inactivated) Netra t 1100/1125 Service Manual

Netra t 1125

Miscellaneous Options

PART #	DESCRIPTION
560-2419 240-2199 340-4439 None None	Earth Bonding Kit M5 Nut Chassis Earth Plate Thomas & Betts 54204-UB Two-Hole Lug (not supplied) Thomas & Betts TBM5-S Crimp Tool (not supplied)
560-2449 540-3646 130-3723 130-3724 None	DC Connector Kit (included with Ship Kit 560-2507-01/02) Mate-N-Lok Connector Kit (×2) AMP Contact Pin 193841-1 (×2) AMP Connector 770017-1 (×1) AMP 356114-1 Hand Crimp Tool (not supplied)
None 130-4361 230-1708 230-1711	DC Connectors (included with Ship Kit 560-2507-03) Wago DC Connector Wago DC Connector Strain Relief Wago DC Connector Opening Lever
595-5832 240-1207 240-1434 240-3071 240-3084 250-1505 340-4250 340-5434 340-6642 340-6643 340-6901 340-7056 340-7212 370-4357	19" Slide Adapter Kit, Option 7099 10-32×1/2" screws (×8) M4×8mm screws (×20) M4×10mm screws (×4) M5×10mm screws (×6) Telescopic slide rail (×2) Chassis handle, 4U (×2) Chassis flange (×2) Front bracket [t 140x] (×2) Rear bracket [t 140x] (×2) Slide flange (×2) Mounting bracket (×2) Chassis handle, straight (×2) Fixings Kit
595-4629 240-2627 340-4249 340-4250	19" Rack Mount Kit, Option 6901 M5 × 8 mm Screw (×6) 19" Chassis Flange (×2) Chassis Handle (×2)
595-4630 240-2627 340-4250 340-4381	23" Rack Mount Kit, Option 6902 M5 × 8 mm Screw (×6) Chassis Handle (×2) 23" Chassis Flange (×2)
595-4631 240-2627 340-4250 340-4724	24" Rack Mount Kit, Option 6903 M5 × 8 mm Screw (×6) Chassis Handle (×2) 24" Chassis Flange (×2)
595-4632 240-2627 340-4250 340-4725	600 mm Rack Mount Kit, Option 6904 M5 × 8 mm Screw (×6) Chassis Handle (×2) 600 mm Chassis Flange (×2)
595-4637 250-1392 [F]	Filter Kit, Option 6913 Fan Filter
