Sun StorEdge[tm] D1000 Array: Full Components List

Array Controller
Backplane
Cable
Disks (8-Slot)
Disks (12-Slot)
     Host Bus Adapter/Controller
Power Supply
Rack Mount Kit
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Array Controller
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 375-0008 [F] Differential SCSI Controller n/a
Backplane
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 501-4560 [F] 8 Slot SCSI Disk Backplane n/a
n/a 501-4440 [F] 12 Slot SCSI Disk Backplane n/a
Cable
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 530-1883 [F] External SCSI Jumper Cable, HD68 to HD68, 20cm n/a
X902A 595-3504 530-1885 [F] External SCSI Cable, HD68 to HD68, 2M n/a
X979A
595-2920
 530-1886 [F] External SCSI Cable, HD68 to HD68, 12M n/a
X3830A 595-4694 530-2454 [F] External SCSI Cable, HD68 to VHDC, 4M (For PCI Systems) n/a
X3831A 595-4695 530-2455 [F] External SCSI Cable, HD68 to VHDC, 10M (For PCI Systems) n/a
Disks (8-Slot D1000 Array)
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X5233A [S] 595-4492 540-3721 [F]

A1000/D1000 FRU
w 1.6" Bkt 540-3025
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 370-3414 [F] Fujitsu MAA3182SC (18.2GB - 7200 RPM) n/a
370-3716 IBM DGHS-18Y (18.2GB - 7200 RPM) n/a
X5240A [S] 595-5258 540-4263 [F]

Spud Bracket FRU
w 1.6" Bkt 540-3025
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 390-0014 Fujitsu MAF3364LC (36.4GB - 10000 RPM) n/a
390-0020 Seagate ST136403LC (36.4GB - 10000 RPM) n/a
Disks (12-Slot D1000 Array)
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X5243A 595-5497 540-4520 [F]

A1000/D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 390-0050 [F] Seagate ST336704LC (36.4GB - 10000 RPM) 390-0069 [F]
390-0051 Fujitsu MAJ3364MC (36.4GB - 10000 RPM) n/a
390-0052 IBM DDYS-T36950 (36.4GB - 10000 RPM) n/a
390-0065 Fujitsu MAN3367MC (36.4GB - 10000 RPM) n/a
390-0069 [F] Seagate ST336605LC (36.4GB - 10000 RPM) 390-0050 [F]
390-0109 [F] Seagate ST336607LC (36.4GB - 10000 RPM) n/a
X5263A 595-6563

540-5455 [F]

Spud Bracket FRU
w 1" Bkt 540-3024
w Plate 340-5928 or 340-7269

 390-0106 [F] Seagate ST373307LC (73.4GB - 10000 RPM) n/a
X5228A [S] 595-4636 540-3594 [F]

A1000/D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 370-3338 Seagate ST34501WC (4.2GB - 10000 RPM) n/a
390-0003 Seagate ST34502LC (4.2GB - 10000 RPM) n/a
X5230A [S] 595-4491 540-3720 [F]

A1000/D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 370-3413 [F] Fujitsu MAB3091SC (9.1GB - 7200 RPM) 370-2369
370-2370 [F]
540-3966 [F]
390-0004 [F] Fujitsu MAE3091LC (9.1GB - 7200 RPM) 370-3404 [F]
370-3595 [F]
540-3966 [F]
370-3404 [F] IBM DDRS-39130 (9.1G - 7200 RPM) 370-3413 [F]
370-3595 [F]
390-0004 [F]
540-3966 [F]
370-3595 [F] Seagate ST39173WC (9.1GB- 7200 RPM) 370-3404 [F]
370-3413 [F]
390-0004 [F]
540-3966 [F]
X5235A [S] 595-5017 540-3966 [F]

A1000/D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 370-3649 Seagate ST39102LC (9.1GB - 10000 RPM) n/a
390-0005 Fujitsu MAG3091LC (9.1G - 10000 RPM) 390-0009 [F]
390-0009 [F] Seagate ST39103LC (9.1GB - 10000 RPM) 390-0005
390-0037 [F]
390-0037 [F] Seagate ST39204LC (9.1GB - 10000 RPM) 390-0005
390-0009 [F]
X5238A [S] 595-5199 540-4178 [F]

A1000/D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 390-0002 [F] Seagate ST318203LC (18.2GB - 10000 RPM) 390-0038 [F]
390-0060 [F]
390-0085 [F]
390-0006 Fujitsu MAG3182LC (18.2GB - 10000 RPM) n/a
390-0038 [F] Seagate ST318404LC (18.2GB - 10000 RPM) 390-0002 [F]
390-0060 [F]
390-0085 [F]
390-0043 Fujitsu MAJ3182MC (18.2GB - 10000 RPM) n/a
390-0048 IBM DDYS-T18350 (18.2GB - 10000 RPM) n/a
390-0066 Fujitsu MAN3184MC (18.2GB - 10000 RPM) n/a
390-0085 [F] Seagate ST318305LC (18.2GB - 10000 RPM) 390-0002 [F]
390-0038 [F]
390-0060 [F]
Host Bus Adapter / Controller
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #		 Previous
Part #
X1065A 595-4187 370-2443 [F] Differential Ultra/Wide SCSI (UDWIS/S) n/a n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a n/a
X6749A 595-5716 375-0119 [F] Dual Differential Ultra SCSI (cPCI) n/a n/a
Power Supply
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 300-1340 [F] FDK PEX737-30 360 Watt Power Supply n/a
Rack Mount Kit
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6838A 595-6719 n/a Sun Rack 900 Rack Mount Kit for A1000/D1000 n/a
X9606A 595-4971 n/a Tower Stand Kit n/a
X9653B 595-6041 n/a A1000/D1000 Universal Rack Mount Kit (use with Sun Fire Cabinet) n/a
X9818A 595-4999 370-3675 72 inch Sun StorEdge Expansion Cabinet Front Door Kit n/a
XARY030A 595-4706 540-3707 72 inch Sun StorEdge Expansion Cabinet n/a
X9653A [S] 595-3906 n/a A1000/D1000 Rack Mount Kit n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

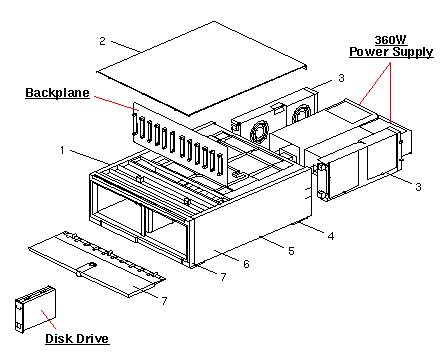

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
1
1
1		 540-3269
540-3270
540-3325
540-3761
Empty 12-Drive Chassis Assembly
Empty 8-Drive Chassis Assembly
Empty Chassis Assembly
Empty 8-Drive Chassis with Rack Mount Tray
2 330-2535 Top Cover
3 540-3323 [F] Fan Tray
4 330-2000 Foot
5 330-2267 Bottom Cover
6 330-2266 Vented Side Panel
7 540-3324 Front Door Assembly (-01 w Frame, -02 without Frame)
NS 150-1890 [F] Differential SCSI Terminator, HD68
NS 240-2690 A1000/D1000 Key
NS 330-1999 Top/Bottom Cover Plug
NS 330-2270 Door Frame
NS 340-4469 A1000/D1000 Tray
NS 340-4470 A1000/D1000 Rack Mounting Bracket (X2)
NS 340-4471 A1000/D1000 Right Clamp
NS 340-4472 A1000/D1000 Left Clamp
NS 370-3290 Empty 1.0" Disk Drive Slot Filler
NS 370-3291 Empty 1.6" Disk Drive Slot Filler
