Netra[tm] t 1400/1405 Servers - Full Components List

Communication
CPU Module
Disks
Ethernet
Fibre Channel
Memory
Miscellaneous
    Power
Rack Mount Kit
Removable Media
SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Communication
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
X1156A [S] 605-1613 370-2810 [F] Serial Asynchronous Interface PCI (SAI/P) 2.0 375-0100 [F]
CPU Module
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1197A 595-5418 501-5682 [F] 440MHz UltraSPARC II Module 501-6209 [F]
Disks
Option # Top Level
Part #
Assembly FRU Manufacturing
Part #
Description Substitute
Part #
X5249A 595-5995 540-4919 [F]

Netra t NEBS FRU
w/ 1" Bracket 540-3024
390-0051 Fujitsu MAJ3364MC
(36.4GB - 10000 RPM)
n/a
390-0050 [F] Seagate ST336704LC
(36.4GB - 10000 RPM)
390-0069 [F]
390-0069 [F] Seagate ST336605LC
(36.4GB - 10000 RPM)
390-0050 [F]
X5242A 595-5496 540-4521 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
390-0051 Fujitsu MAJ3364MC
(36.4GB - 10000 RPM)
n/a
390-0050 [F] Seagate ST336704LC
(36.4GB - 10000 RPM)
390-0069 [F]
390-0065 Fujitsu MAN3367MC
(36.4GB - 10000 RPM)
n/a
390-0069 [F] Seagate ST336605LC
(36.4GB - 10000 RPM)
390-0050 [F]
390-0109 [F] Seagate ST336607LC
(36.4GB - 10000 RPM)
n/a
X5247A 595-5996 540-4921 [F]

Netra t NEBS FRU
w/ 1" Bracket 540-3024
390-0038 [F] Seagate ST318404LC
(18.2GB - 10000 RPM)
390-0002 [F]
390-0060 [F]
390-0043 Fujitsu MAJ3182MC
(18.2GB - 10000 RPM)
n/a
390-0048 IBM DDYS-T18350
(18.2GB - 10000 RPM)
n/a
390-0085 [F] Seagate ST318305LC
(18.2GB - 10000 RPM)
390-0002 [F]
390-0038 [F]
390-0060 [F]
X5237A [S] 595-5198 540-4177 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
390-0006 Fujitsu MAG3182LC
(18.2GB - 10000 RPM)
n/a
390-0002 [F] Seagate ST318203LC
(18.2GB - 10000 RPM)
390-0038 [F]
390-0060 [F]
390-0038 [F] Seagate ST318404LC
(18.2GB - 10000 RPM)
390-0002 [F]
390-0060 [F]
390-0043 Fujitsu MAJ3182MC
(18.2GB - 10000 RPM)
n/a
390-0048 IBM DDYS-T18350
(18.2GB - 10000 RPM)
n/a
390-0066 Fujitsu MAN3184MC
(18.2GB - 10000 RPM)
n/a
390-0085 [F] Seagate ST318305LC
(18.2GB - 10000 RPM)
390-0002 [F]
390-0038 [F]
390-0060 [F]
Ethernet
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X2069A [S] 595-5414 501-5426 [F] Gigabit Ethernet FC-AL/P n/a
Fibre Channel
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
X6729A [S] 595-4685 375-0040 [F] Single Loop PCI FC-AL Host Adapter (FC100/P) n/a
Memory
Option # Top Level
Part #
Manufacturing
Part #
Option Description Previous
Part #
Substitute
Part #
X7043A 595-5409 501-5691 [F] (64MB) 128MB (2 × 64MB DIMM), 5V n/a n/a
X7005A 595-4691 501-6056 [F] (256MB) 512 MB (2 × 256MB DIMMS) w/ GAL (Gate Array Logic) 501-4743 [F] 501-6005 [F]
n/a n/a 501-6005 [F] 256MB DIMM w/ Gate Array Logic n/a 501-6056 [F]
n/a n/a 501-5218 [F] Ultra 80 Memory Riser Board n/a n/a
Miscellaneous
Option # Top Level
Part #
Manufacturing
Part #
Option Description Substitute
Part #
n/a 599-2339 501-5437 [F] Alarm Module n/a
X7075A 595-5355 330-2930 Air Filter Pack (×5) n/a
X949A [S] 595-5302
130-4361
230-1708
230-1711
Wago DC Connector Set:
DC Connector (×10)
DC Connector Strain Relief (×10)
DC Connector Opening Lever
n/a
X7076A [S] 595-5356 263-0634
263-0731
263-0732
263-0733
263-0734
263-0735
330-2809
540-4066
540-4068
Sun Logo Nameplate
DWG NEBS Nameplate
Netra t 1400 Nameplate
Netra t 1405 Nameplate
t 1400 Fascia LED Nameplate
t 1405 Fascia LED Nameplate
Switch and LED Cover
Removable Media Cover Assembly
Fan Cover Assembly
n/a
Power - DC (t 1400)
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 300-1435 [F] 330W DC Power Supply, Type D129 n/a
Power - AC (t 1405)
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 300-1434 [F] 330W AC Power Supply, Type A142 n/a
Rack Mount Kit
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X7071A 595-5351 560-2580 19-inch Rack Mount Kit n/a
X7072A 595-5352 560-2573 23-inch Rack Mount Kit n/a
X7073A 595-5353 560-2574 24-inch Rack Mount Kit n/a
X7074A 595-5354 560-2575 600mm Rack Mount Kit n/a
X7099A 595-5832 n/a 19" Slide Adapter Kit n/a
X6914A [S] 595-5357 n/a Rack Mount Slide Adapter Kit n/a
Removable Media
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6168A 595-5558 390-0025 [F] 10X DVD-ROM n/a
X6295A 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 DAT Tape Drive n/a
X6912A 595-5301 370-2376 [F] 12-24 GB 4 mm DDS-3 Tape Drive n/a
X6911A [N] 595-5300 370-3416 [F] SunCD 32 n/a
SCSI
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 501-5168 [F] 0MB FRU n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

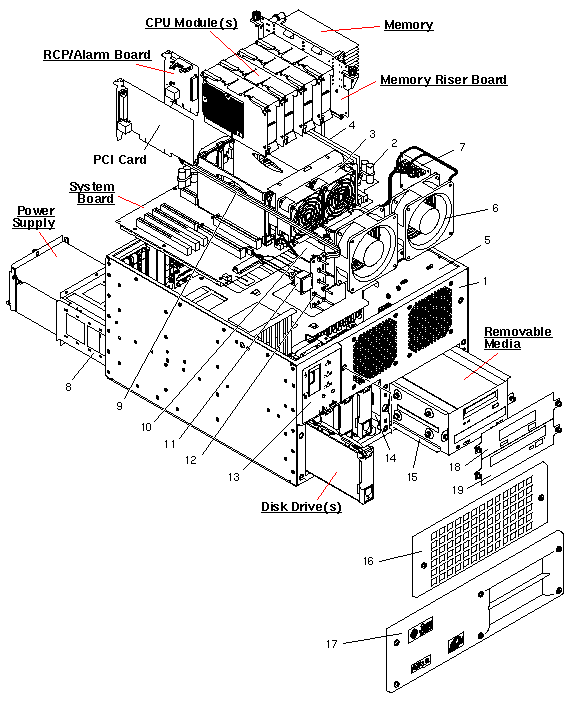

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
1
2
3
4
1
5
6
7
8
9
10
11
12
13
14
-
15
16
17
NS
NS
NS
NS
599-2295
599-2349
300-1407 [F]
540-4262 [F]
540-3948 [F]
540-4065
501-5125 [F]
370-3976 [F]
501-5561 [F]
370-3920 [F]
370-4039
370-4040
530-2514 [F]
501-5560 [F]
330-2809
540-4311 [F]
370-3929
340-5568
540-4068
540-4066
370-3273
370-3927
370-3928
540-4067
Netra t 1405 AC Chassis Assembly
Netra t 1400 DC Chassis Assembly
125 Watt DC-DC Converter with Fan
Ultra 80 System Board Fan Assembly
Ultra 80 System Board Shroud Assembly
Chassis Assembly
Removable Media SCSI Adapter
Fan
Fan Control Board
Power Distribution Backplane Assembly
LED/Alarm Cable
LED/Motherboard Cable
Power Switch and Cable
LED Board
Switch and LED Cover
Disk Bay Assembly (1.0" or 1.6" height)
Disk Bay Power Cable
Removable Media Mounting Bracket
Fan Cover
Removable Media Cover
PCI Slot Filler Panel
Removable Media SCSI Cable
Removable Media Power Cable
Top Cover
18 340-5595 DAT Outer Filler Panel
19 340-5594 CD-ROM Outer Filler Panel
NS 540-3551 CD-ROM/DAT Inner Filler Panel
NS
-
-
-
-
-
565-1639 [F]
370-3927
370-3928
370-3929
370-4039
370-4040
Cable Kit
Removable Media SCSI Cable
Removable Media Power Cable
Disk Bay Power Cable
LED/Alarm Cable
LED/Motherboard Cable
NS
-
-
-
-
-
-
-
560-2579
130-4361
230-1708
230-1711
340-6091
560-2569
340-4250
340-5904
t 1400 Ship Kit
Wago DC Connector
Wago DC Connector Strain Relief
Wago DC Connector Opening Lever
Memory Riser Torque Tool
Flange Kit
4U Chassis Handle
19-inch Flange
NS
-
-
-
-
560-2568
340-6091
560-2569
340-4250
340-5904
t 1405 Ship Kit
Memory Riser Torque Tool
Flange Kit
4U Chassis Handle
19-inch Flange
