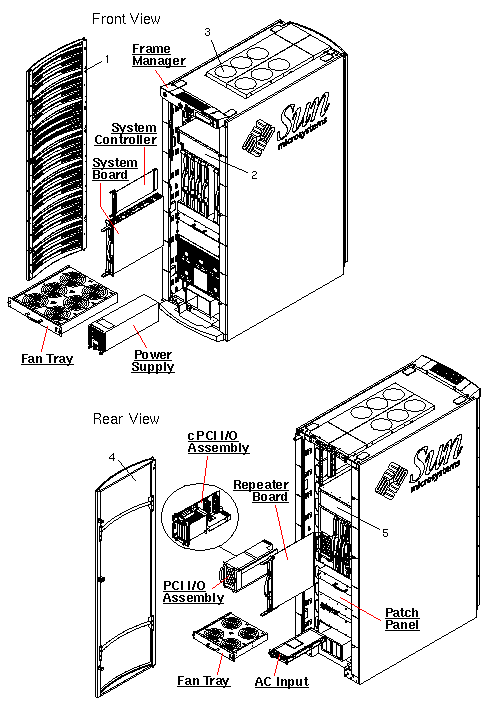

Sun Fire[tm] 6800 Server - Full Components List
| Boot PROM |
Manufacturing
Part # |
Patch |
| n/a |
 112883 |
| Centerplane
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
500-4405 |
501-4405 |
6 Slot System Centerplane (Factory Installed) |
501-5879
[F] |
| n/a |
501-5879
[F] |
6 Slot System Centerplane (FRU) |
n/a |
| X4070A |
595-5384 |
501-4953
[F] |
Repeater Board |
n/a |
| n/a |
n/a |
501-5005 [F] |
Power Distribution Centerplane |
n/a |
| n/a |
n/a |
501-5006 [F] |
Fan Distribution Centerplane |
n/a |
| Communication |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X1071A |
605-1636 |
370-3878 [F] |
HIPPI/P 1.1 High Performance Interface Board |
n/a |
X1074A
X3895A
X3901A
X3903A |
595-5149
595-5191
595-5426
595-5428 |
370-3868
[F]
370-3922
[F]
530-2869
[F]
530-2871
[F] |
SCI Adapter (SCI/P)
Cluster 4 port SCI switch
Cluster SCI Cable, 2M
Cluster SCI Cable, 7.5M |
n/a
n/a
n/a
n/a |
| X1155A |
605-1644 |
370-2728
[F] |
High Speed Serial Interface (HSI/P) 2.0 |
n/a |
| X1157A |
605-1623 |
501-3028
[F] |
SunATM-155/MFiber PCI 4.0 |
n/a |
| X1158A |
605-1624 |
501-3027
[F] |
SunATM-155/UTP PCI 4.0 |
n/a |
| X1159A |
605-1625 |
501-3029
[F] |
SunATM-622/MFiber PCI 4.0 |
n/a |
| X1266A |
595-5308 |
501-5483
[F] |
Compact PCI (cPCI) SunATM 155 MMF
NIC |
n/a |
| X1268A |
595-5309 |
501-5564
[F] |
Compact PCI (cPCI) SunATM 622 MMF
NIC |
n/a |
| X2156A |
605-1644 |
375-0100
[F] |
Serial Asynchronous Interface (SAI/P) 3.0 |
n/a |
| X6762A |
595-6296 |
375-3089
[F] |
Crypto Accelerator 1000 |
n/a |
| Ethernet
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X1033A |
595-4498 |
501-5019
[F] |
SunFastEthernet PCI Adapter 2.0 (FE/P) |
501-4359
[F] |
| X1034A |
605-1594 |
501-5406
[F] |
Quad FastEthernet PCI Card (QFE/P) |
501-4366
[F] |
| X1141A |
605-1602 |
501-4373
[F] |
Gigabit Ethernet 2.0 PCI Card (GBE/P) |
n/a |
| X1150A |
595-5812 |
501-5902
[F] |
Sun GigaSwift Ethernet UTP (Copper) |
n/a |
| X1151A |
595-5773 |
501-5524
[F] |
Sun GigaSwift Ethernet MMF (Fiber) |
n/a |
| X1234A |
595-5307 |
501-5502
[F] |
Compact PCI (cPCI) QuadFastEthernet
(QFE) |
n/a |
| X1261A |
595-5310 |
501-5523 [F] |
Compact PCI (cPCI) Gigabit Ethernet * |
n/a |
| * - Although this card has the name "Gigabit",
it uses the Gigaswift driver (ce). |
| Fan |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-3631 [F] |
Fan Tray I/O Area (FT0 & FT2) |
n/a |
| X4322A |
595-5397 |
540-3632 [F] |
Fan Tray CPU Area (FT1 & FT3) |
n/a |
| X4320A |
595-5395 |
540-3662 [F] |
Fan Tray System Rack |
n/a |
| Fibre Channel |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X6727A |
595-5853 |
375-3030
[F] |
PCI Dual FC Network Adapter+ |
n/a |
| X6748A |
595-5715 |
375-0118
[F] |
Compact PCI (cPCI) Dual Channel FC |
n/a |
| X6767A |
595-6425 |
375-3102
[F] |
2GB PCI Single FC Network Adapter |
n/a |
| X6768A |
595-6426 |
375-3108
[F] |
2GB PCI Dual FC Network Adapter |
n/a |
| X6799A |
595-5830 |
375-3019
[F] |
PCI Single FC-AL Host Adapter |
n/a |
| Graphics |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X3678A [S] |
595-5239 |
370-3987
[F] |
Expert3D 24-Bit Color Frame Buffer |
n/a |
| ID Board |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Component Type |
Substitute
Part # |
| n/a |
n/a |
501-5132 |
ID Board (SEEPROM), Factory Installed |
501-5880
[F] |
| n/a |
501-5880
[F] |
ID Board (SEEPROM), FRU |
n/a |
| I/O
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X4030A |
595-5380 |
501-4868
540-4617
[F] |
cPCI I/O Assembly (4 slot) |
n/a |
| X4050A |
595-5382 |
501-4404
540-4616
[F] |
PCI I/O Assembly (8 slot) |
n/a |
| Memory
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Option Description |
Previous
Part # |
Substitute
Part # |
| X7051A |
595-5727 |
501-5030
[F] (512MB) |
2 GB (4 × 512MB SDRAM DIMMs) |
540-5085 |
n/a |
| X7053A |
595-5729 |
501-5401
[F] (256MB) |
1 GB (4 × 256MB SDRAM DIMMs) |
540-5084 |
n/a |
| X7056A |
595-6186 |
540-5086
[F] (1GB) * |
4 GB (4 × 1GB SDRAM DIMMs) |
n/a |
501-6109
[F] |
| n/a |
n/a |
501-6109
[F] (1GB) * |
1GB SDRAM DIMM |
n/a |
540-5086
[F] |
| For Sun Fire 3800-6800, 1GB DIMMs 501-6109 and
540-5086 are only supported on 900MHz and faster system boards. |
| Miscellaneous |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-4523
[F] |
Sun StorEdge D240 Mediatray |
n/a |
| Power - DC |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X4302A |
595-5392 |
300-1459
[F] |
A152, AC-48VDC Power Supply |
n/a |
| Power - AC |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X4340A |
595-5399 |
300-1335
[F] |
AC Redundant Transfer Unit |
n/a |
| X4341A |
595-5400 |
300-1396
[F] |
AC Redundant Transfer Switch |
n/a |
| n/a |
n/a |
540-3588
[F] |
AC Input Box |
n/a |
| Rack |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-3996
[F] |
Patch Panel |
n/a |
| n/a |
n/a |
540-3883
[F] |
Frame Manager |
n/a |
| X4359A |
595-6351 |
n/a |
Rack Mount Kit for Unipacks |
n/a |
| n/a |
n/a |
540-3353
 340-4174 |

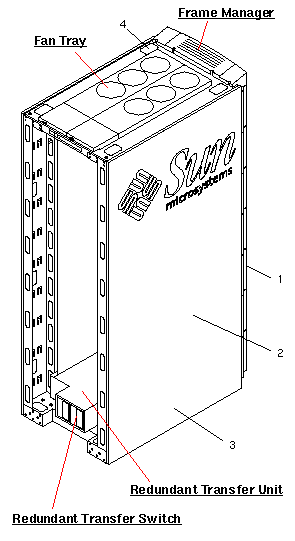

Sun Fire 6800 Cabinet
Cabinet
Frame |
n/a |
| SCSI |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X1032A |
595-4258 |
501-5656
[F] |
Single-Ended Ultra/Wide SCSI (SunSwift PCI) +
10/100 Ethernet |
501-2741
[F] |
| X1232A |
595-5306 |
501-5570
[F] |
Compact PCI (cPCI) Single Ended UltraSCSI + 10/100
Ethernet |
n/a |
| X2222A |
595-5624 |
501-5727
[F] |
Dual FastEthernet + Dual SCSI PCI Adapter |
n/a |
| X6540A |
595-4399 |
375-0005
[F] |
Dual Single-Ended Ultra/Wide SCSI (PCI) |
n/a |
| X6541A |
595-4414 |
375-0006
[F] |
Dual Differential Ultra/Wide SCSI
(PCI) |
n/a |
| X6749A |
595-5716 |
375-0119
[F] |
Dual Differential Ultra SCSI (cPCI) |
n/a |
| X6758A |
595-5945 |
375-3057 [F] |
PCI Dual Ultra3 SCSI Host Adapter * |
n/a |
| * - The necessary drivers (SUNWqus & SUNWqusu)
and patches for this product are not included in Solaris 8 or 9,
but must be downloaded. Please see infodoc
47841
for details. |
| System Board |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X4006A |
595-6177 |
540-5051
[F] |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ
0MB |
n/a |
| X4007A |
595-6178 |
540-5052
[F] |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ
0MB |
n/a |
| X4004A |
595-5481 |
540-4729
[F] |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III 750MHZ
0MB |
n/a |
| X4005A |
595-5478 |
540-4730
[F] |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III 750MHZ
0MB |
n/a |
| XCPUBD-2-1050-CDP |
595-6846 |
540-5623
[F] |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC
III Cu 1050MHz, 8MB Ecache each, & 0MB Memory |
n/a |
| XCPUBD-4-1050-CDP |
595-6311 |
540-5267
[F] |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC
III Cu 1050MHz, 8MB Ecache each, & 0MB Memory |
n/a |
| XCPUBD-221-1050 |
595-6779 |
540-5271 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 2GB Memory |
540-5623
[F] |
| XCPUBD-222-1050 |
595-6780 |
540-5272 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 4GB Memory |
540-5623
[F] |
| XCPUBD-224-1050 |
595-6781 |
540-5273 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 8GB Memory |
540-5623
[F] |
| XCPUBD-441-1050 |
595-6782 |
540-5274 |
Sun Fire CPU/Memory Uniboard with 4UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 4GB Memory |
540-5267
[F] |
| XCPUBD-481-1050 |
595-5275 |
540-5275 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 8GB Memory |
540-5267
[F] |
| XCPUBD-481-1050-C |
595-6588 |
540-5475 |
Capacity On Demand (COD) Uniboard bundle with 4 unlicensed
UltraSPARC III CU 1050MHz, 8MB Ecache, & 8GB Memory. Note:
COD Right-To-Use (RTU) licenses must be ordered separately to activate. |
540-5267
[F] |
| XCPUBD-482-1050 |
595-6312 |
540-5268 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 16GB Memory |
540-5267
[F] |
| XCPUBD-484-1050 |
595-6313 |
540-5269 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz,
8MB Ecache each, & 32GB Memory |
540-5267
[F] |
| XCPUBD-2029 |
595-6179 |
540-4984 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 2GB Memory |
540-5051
[F] |
| XCPUBD-2049 |
595-6200 |
540-5094 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 4GB Memory |
540-5051
[F] |
| XCPUBD-2089 |
595-6201 |
540-5095 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 8GB Memory |
540-5051
[F] |
| XCPUBD-4049 |
595-5985 |
540-4934 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 4GB Memory |
540-5052
[F] |
| XCPUBD-F4089 |
595-6190 |
540-4992 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 8GB Memory |
540-5052
[F] |
| XCPUBD-F4089-C |
595-6587 |
540-5474 |
Capacity On Demand (COD) Uniboard bundle with 4 unlicensed
UltraSPARC III CU 900MHz, 8MB Ecache, & 8GB Memory. Note: COD
Right-To-Use (RTU) licenses must be ordered separately to activate. |
540-5052
[F] |
| XCPUBD-F4169 |
595-6191 |
540-4990 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 16GB Memory |
540-5052
[F] |
| XCPUBD-F4329 |
595-6192 |
540-4993 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ,
8MB Ecache each, & 32GB Memory |
540-5052
[F] |
| SF-XCPUBD-227 |
n/a |
540-4830 |
Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III 750MHZ
& 2GB Memory |
540-4729
[F] |
| SF-XCPUBD-447 |
n/a |
540-4829 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III 750MHZ
& 4GB Memory |
540-4730
[F] |
| SF-XCPUBD-487 |
n/a |
540-4832 |
Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III 750MHZ
& 8GB Memory |
540-4730
[F] |
| System Controller
Board |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
501-5407
[F] |
System Controller Board |
n/a |
| Table Legend |
[F] = Field Replaceable Unit
(FRU)
[S] = Supported, but can no longer be ordered
with this system
[N] = No longer supported for this system
|
6800 Exploded View
(Click on underlined text to view components)
| Table Legend |
| [F] = Field Replaceable Unit (FRU) |
| CODE |
MANUFACTURING
PART #
|
DESCRIPTION
|
| 1 |
540-3684 |
Curved 7-Panel Door |
| 2 |
240-3530 [F] |
Air Inlet Cover |
| 3 |
540-3662 [F] |
Fan Tray System Rack |
| 4 |
540-4055 |
Curved Rear Door |
| 5 |
240-3531 [F] |
Air Outlet Cover |
| NS |
180-1943 [F] |
AC Input Power Cable, Harting Han 6HsB to NEMA
L6-30P (North American, Asian) Option X3800A |
| NS |
180-1944 [F] |
AC Input Power Cable, Harting Han 6HsB to IEC309
(International) Option X3848A |
| NS |
180-1945 [F] |
Power Cord IEC320 to AMP Mate-N-Lok, 2M |
| NS |
180-1946 [F] |
AC Power Cable, RTU0 to AC0, .61 Meter |
| NS |
180-1947 [F] |
Cable AC Power, RTU1 to AC1, 1.5 Meter |
| NS |
180-1948 [F] |
Power Cord IEC320 to AMP Mate-N-Lok, 3M |
| NS |
240-3580 [F] |
Redundant Transfer Unit Filler Panel |
| NS |
240-3920 [F] |
CPU/Memory Board EMI Spring Finger Clip |
| NS |
330-2014 [F] |
AC Power Key / Door Key |
| NS |
330-2821 [F] |
System Board Filler Panel (install when servicing) |
| NS |
330-2822 [F] |
I/O Assembly Filler Panel (install when servicing) |
| NS |
340-4796 [F] |
Right Side Power Bus Bar (Right side when looking
at front of server, left side when looking at rear of server) |
| NS |
340-4797 [F] |
Left Side Power Bus Bar (Left side when looking
at front of server, right side when looking at rear of server) |
| NS |
530-2545 [F] |
System Centerplane to Power Centerplane I2C Cable |
| NS |
530-2546 [F] |
System Centerplane to Fan Centerplane Power and
I2C Cable |
| NS |
530-2560 [F] |
SSC to Patch Panel Serial Cable |
| NS |
530-2563 [F] |
Frame Manager to Patch Panel Serial Y Cable |
| NS |
530-2565 [F] |
Frame Manager to Rack Fan Power Cable |
| NS |
530-2573 [F] |
Twisted Pair Ethernet, RJ45 Cable |
| NS |
530-2704 [F] |
Keyswitch Cable |
| NS |
530-2713 |
Fan Tray to Rack Fan Cable |
| NS |
530-2720 |
Frame Manager Cable |
| NS |
530-2990 [F] |
CBL,SHIELD, RJ45, CIP-IWF1, 2M |
| NS |
540-4040 [F] |
System Board Filler Board |
| NS |
540-4044 [F] |
System Controller Filler Panel |
| NS |
540-4045 [F] |
Short PCI Card Filler Board |
| NS |
540-4046 [F] |
Long PCI Card Filler Board |
| NS |
540-4075 [F] |
Power Supply Filler Panel |
| NS |
540-4286 |
I/O Assembly Filler Panel |
| NS |
540-4446 [F] |
cPCI Card Filler |
| NS |
825-5138 |
Sun Fire 6800 Document Set |
6800 Cabinet Exploded View
(Click on underlined text to view components)
| Table Legend |
| [F] = Field Replaceable Unit (FRU) |
| CODE |
MANUFACTURING
PART # |
DESCRIPTION
|
| 1 |
540-3684 [F] |
Curved 7-Panel Door |
2
2 |
540-3353
340-4174 |
Cabinet Assembly
Cabinet
Frame |
| 3 |
340-4374 |
Side Panel |
| 4 |
330-6728 |
Cosmetic Cap |
| NS |
540-4055 [F] |
Curved Rear Door |
| NS |
180-1943 [F] |
AC Input Power Cable, Harting Han 6HsB to NEMA
L6-30P (North American, Asian) Option X3800A |
| NS |
180-1944 [F] |
AC Input Power Cable, Harting Han 6HsB to IEC309
(International) Option X3848A |
| NS |
180-1945 [F] |
Power Cord IEC320 to AMP Mate-N-Lok, 2M |
| NS |
180-1946 [F] |
AC Power Cable, RTU0 to AC0, .61 Meter |
| NS |
180-1947 [F] |
Cable AC Power, RTU1 to AC1, 1.5 Meter |
| NS |
180-1948 |
Power Cord IEC320 to AMP Mate-N-Lok, 3M |
| NS |
230-1536 |
Cabinet Leveler Foot (×4) |
| NS |
240-3379 |
Swivel Caster |
| NS |
240-3808 |
Anti-Tilt Bar Leveler Foot (×2) |
| NS |
530-2560 [F] |
System Controller to Patch Panel Serial Cable Caster |
| NS |
530-2563 [F] |
Frame Manager to Patch Panel Serial Y Cable |
| NS |
530-2565 [F] |
Fan Power Cable, Frame Manager to Fan Tray |
| NS |
530-2704 [F] |
Key Switch Cable, Frame Manager to RTU |
|
