Sun Blade[tm] 150 Workstation - Full Components List
| Boot PROM |
| Socket |
Manufacturing
Part # |
Patch |
| U40 |
370-5209
|
n/a |
| Cables |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X901A |
595-3503 |
530-1884 [F] |
External SCSI Cable, HD68 to HD68, 80cm |
n/a |
| X902A |
595-3504 |
530-1885 [F] |
External SCSI Cable, HD68 to HD68, 2M |
n/a |
| X903A |
F530-2115 |
530-2115 [F] |
External SCSI Cable, HD50 to HD68, 1.2M |
n/a |
| X904A |
F530-2228 |
530-2228 [F] |
External SCSI Cable, HD50 to HD68, 2M |
n/a |
| X3856A |
595-4851 |
530-2383 [F] |
External Fast-wide SCSI Cable, HD68 to HD68, 80cm,
w/ Power Cord |
n/a |
| X3857A |
595-4852 |
530-2115 [F] |
External Fast-narrow SCSI Cable, HD50 to HD68, 1.2M,
w/ Power Cord |
n/a |
| X471A |
n/a |
530-2917 [F] |
HD15M to DB13W3F Video Adapter, 24" |
n/a |
| X3872A |
n/a |
130-3034 [F] |
HD15F to DB13W3M Adapter |
n/a |
| n/a |
n/a |
370-4209 [F] |
Internal Cable Service Kit (see
Exploded View) |
n/a |
| n/a |
n/a |
370-5266 |
DB15 Video Extension Cable |
n/a |
| n/a |
n/a |
370-5267 |
DB9 Serial Extension Cable |
n/a |
| Communication |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X1155A |
605-1611 |
370-2728
[F] |
High Speed Serial Interface (HSI/P) 2.0 |
n/a |
| X1157A |
605-1623 |
501-3028
[F] |
SunATM-155/MFiber 4.0 |
n/a |
| X1158A |
605-1624 |
501-3027
[F] |
SunATM-155/UTP 4.0 |
n/a |
| X1159A |
605-1625 |
501-3029 [F] |
SunATM-622/MFiber 4.0 |
n/a |
| X2156A |
605-1644 |
375-0100
[F] |
Serial Asynchronous Interface (SAI/P) 3.0 |
n/a |
| CPU Module |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
100-7192 [F] |
550MHz UltraSPARC IIi Module |
n/a |
| n/a |
n/a |
527-1023 [F] |
650MHz UltraSPARC IIi Module |
n/a |
| Disks |
| Option # |
Top Level
Part # |
Assembly
FRU |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X6184A |
595-6586 |
n/a |
370-4440 [F] |
Seagate ST340016A
(40.8GB - 7200 RPM Ultra ATA/100)
Barracuda ATA IV |
n/a |
| Ethernet
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X1033A |
595-4498 |
501-5019 [F] |
SunFastEthernet (FE/P) |
501-4359 [F] |
| X1034A |
605-1594 |
501-5406 [F] |
Sun Quad FastEthernet (QFE/P) |
501-4366 [F] |
| X1141A |
605-1601 |
501-4373 [F] |
Gigabit Ethernet 2.0 (GBE/P) |
n/a |
| X1150A |
595-5812 |
501-5902 [F] |
Sun GigaSwift Ethernet UTP |
n/a |
| X1151A |
595-5773 |
501-5524 [F] |
Sun GigaSwift Ethernet MMF |
n/a |
| Graphics |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X3685A |
605-4651 |
375-3069 [F]
|
XVR-500 Graphics Accelerator |
n/a |
| X3768A |
605-4639 |
370-4362
[F]
|
PGX64 8/24-Bit Color Frame Buffer |
n/a |
| IDPROM |
| Socket |
Manufacturing
Part # |
Component Type |
Host ID |
| U48 |
100-6889
[F]
|
48T59 NVRAM |
83xxxxxx |
| Input Devices |
| Option # |
Top Level
Part #(s) |
Manufacturing
Part #(s) |
Description |
Substitute
Part #(s) |
| n/a |
n/a |
370-1678 [F] |
SunMicrophone II |
n/a |
| X3682A [S] |
595-5526 |
370-4161 [F]
|
Sun 1394 Visual Collaboration Kit |
n/a |
| Memory
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Option Description |
Substitute
Part # |
| X6179A |
595-6751 |
370-5676 [F] (128MB) |
128MB (1 × 128MB SDRAM DIMM) |
n/a |
| X6180A |
595-6752 |
370-5677 [F] (256MB) |
256MB (1 × 256MB SDRAM DIMM) |
n/a |
| X6181A |
595-6753 |
370-5678 [F] (512MB) |
512MB (1 × 512MB SDRAM DIMM) |
n/a |
|
| The Sun Blade 100 memory parts shown below were shipped
in some Sun Blade 150 systems, although not all vendors' DIMMs
represented by these numbers will work in the 150. Orders
for these parts are being monitored to ensure that only
qualified replacement DIMMs are shipped for installation in
the Sun Blade 150. It is recommended that the new part numbers
shown above be used for replacement orders. |
| X6991A |
595-5621 |
370-4149 [F] (128MB) |
128MB (1 × 128MB SDRAM DIMM) |
n/a |
| X6992A |
595-5622 |
370-4150 [F] (256MB) |
256MB (1 × 256MB SDRAM DIMM) |
n/a |
| X6993A |
595-5623 |
370-4151 [F] (512MB) |
512MB (1 × 512MB SDRAM DIMM) |
n/a |
| Miscellaneous |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X2132A |
605-4646 |
375-3051 [F]
|
SunPCi IIpro 733MHz coprocessor card |
n/a |
| X7042A |
595-5694 |
370-4294 [F] |
SunPCi II 128MB memory expansion |
n/a |
| X7044A |
595-5695 |
370-4295 [F] |
SunPCi II 256MB memory expansion |
n/a |
| X7045A |
595-6010 |
370-4430 [F] |
SunPCi IIpro 512MB memory expansion |
n/a |
| n/a |
n/a |
370-4873 [F]
|
PCI Riser Board |
n/a |
| n/a |
n/a |
370-4666 [F] |
Smart Card Reader (double-sided) |
n/a |
| Power - DC |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
370-4872 [F] |
Mitac 250 Watt Power Supply |
n/a |
| Removable Media |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
370-4211 [F] |
Triple Density Floppy [standard configuration] |
n/a |
| 6178A |
596-3377 |
370-4152 [F] |
48X EIDE CD-ROM |
n/a |
| X6175A |
595-6086 |
370-4439 [F] |
16X DVD-ROM |
n/a |
| SCSI |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X1032A |
595-4258 |
501-5656
[F] |
Single-Ended Ultra/Wide SCSI (SunSwift PCI) |
501-2741
[F] |
| X2222A |
595-5624 |
501-5727 [F]
|
Dual FastEthernet + Dual SCSI PCI Adapter |
n/a |
| X5010A |
595-5377 |
375-0097
[F]
|
Single-Channel Single-Ended Ultra/Wide SCSI (PCI) |
n/a |
| X6540A |
595-4399 |
375-0005
[F] |
Dual Single-Ended Ultra/Wide SCSI (PCI) |
n/a |
| X6541A |
595-4414 |
375-0006
[F] |
Dual Differential Ultra/Wide SCSI (PCI) |
n/a |
| System Board |
| Option # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
375-3088 [F] |
0MB FRU w/o UltraSPARC IIi |
n/a |
| n/a |
375-3063 |
0MB FRU w/ 550MHz UltraSPARC IIi |
n/a |
| n/a |
375-3084 |
0MB FRU w/ 650MHz UltraSPARC IIi |
n/a |
| Table Legend |
[F] = Field Replaceable Unit
(FRU)
[S] = Supported, but can no longer be ordered
with this system
[N] = No longer supported for this system
|

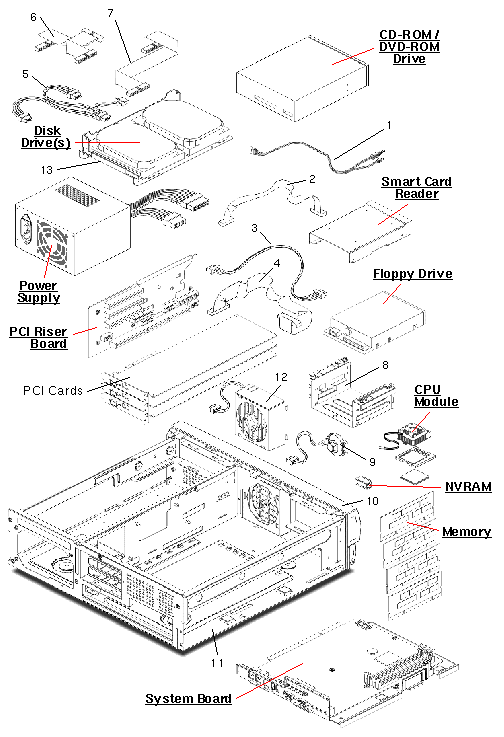

Exploded View
| Table Legend |
| [F] = Field Replaceable Unit (FRU) |
|
Power Switch and LED Cable
