Sun Fire[tm] V120 / Netra[tm] 120 Server - Full Components List

Communication
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
Memory

Miscellaneous
Power
Rack Mount Kit
Removable Media
SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Communication
X1155A	605-1611	370-2728 [F]	High Speed Serial Interface (HSI/P) 2.0	n/a
X1157A	605-1623	501-3028 [F]	SunATM-155/MFiber 4.0	n/a
X1158A	605-1598	501-3027 [F]	SunATM-155/UTP 3.0	n/a
X2156A	605-1644	375-0100 [F]	Serial Asynchronous Interface (SAI/P) 3.0	n/a
X6762A	595-6296	375-3089 [F]	Crypto Accelerator 1000	n/a
X1133A [S]	595-5655	375-0130 [F]	Crypto Accelerator I	n/a

Option #	Top Level Part #	Assembly FRU	Manufacturing Part #	Description	Substitute Part #
Disks
X5244A	595-5673	540-4689 [F] Netra NEBS FRU w/ 1" Bracket 540-3024 w/ Plate 340-4288 or 340-6640 or 340-5928 or 370-7269	390-0050 [F]	Seagate ST336704LC (36.4GB - 10000 RPM)	390-0069 [F]
			390-0051	Fujitsu MAJ3364MC (36.4GB - 10000 RPM)	n/a
			390-0052	IBM DDYS-T36950 (36.4GB - 10000 RPM)	n/a
			390-0069 [F]	Seagate ST336605LC (36.4GB - 10000 RPM)	390-0050 [F]
			390-0109 [F]	Seagate ST336607LC (36.4GB - 10000 RPM)	n/a
X5239A	595-5367	540-4401 [F] Netra NEBS FRU w/ 1" Bracket 540-3024 w/ Plate 340-4288 or 340-6640 or 340-5928 or 340-7269	390-0002 [F]	Seagate ST318203LC (18.2GB - 10000 RPM)	390-0038 [F] 390-0060 [F]
			390-0043	Fujitsu MAJ3182MC (18.2GB - 10000 RPM)	n/a
			390-0048	IBM DDYS-T18350 (18.2GB - 10000 RPM)	n/a
			390-0085	Seagate ST318305LC (18.2GB - 10000 RPM)	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Ethernet
X1033A	595-4498	501-5019 [F]	SunFastEthernet (FE/P)	501-4359 [F]
X1034A	605-1594	501-5406 [F]	Sun Quad FastEthernet (QFE/P)	501-4366 [F]
X1141A	605-1601	501-4373 [F]	Gigabit Ethernet 2.0 (GBE/P)	n/a
X1150A	595-5812	501-5902 [F]	Sun GigaSwift Ethernet UTP	n/a
X1151A	595-5773	501-5524 [F]	Sun GigaSwift Ethernet MMF	n/a
X2069A [S]	595-5414	501-5426 [F]	Gigabit Ethernet FC-AL/P	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Fibre Channel
X6727A	595-5853	375-3030 [F]	PCI Dual FC Network Adapter+	n/a
X6799A	595-5830	375-3019 [F]	PCI Single FC Host Adapter	n/a
X6729A [S]	595-4685	375-0040 [F]	Single Loop PCI FC-AL Host Adapter (FC100/P)	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Graphics
X3768A	605-4639	370-4362 [F]	PGX64 8/24-Bit Color Frame Buffer	n/a

Socket	Manufacturing Part #	Component Type	Host ID
IDPROM
U25	100-6889 [F]	48T59 NVRAM	8xxxxxxx

Option #	Top Level Part #	Manufacturing Part #	Option Description	Substitute Part #
Memory
X7091A	595-5783	370-4237 [F]	256 MB SDRAM DIMM	n/a
X7092A	595-5784	370-4281 [F]	512 MB SDRAM DIMM	n/a
X7093A	595-6267	370-4874 [F]	1 GB SDRAM DIMM	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Miscellaneous
n/a	n/a	370-4290 [F]	LED/System Configuration Card Reader	n/a
n/a	n/a	370-4285 [F]	System Configuration Card	n/a
X949A	595-5302	130-4361 230-1708 230-1711	Wago DC Connector Set: DC Connector (×10) DC Connector Strain Relief (×10) DC Connector Opening Lever	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Power - AC (Sun Fire V120)
n/a	n/a	300-1488 [F]	Delta DPS-129AB AC Input Power Supply Type A160	n/a
Power - DC (Netra 120)
Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
n/a	n/a	300-1489 [F]	Delta DC Input Power Supply Type D137	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Rack Mount Kit
X7085A	595-5802	n/a	19-inch Rack Mount Kit	n/a
X6967A	595-5323	n/a	24-inch Rack Mount Kit	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Removable Media
X7088A	595-5785	370-4278 [F]	Internal CD-ROM / Paddle Board	n/a
X7288A	595-6168	540-5014 [F]	Internal DVD-ROM	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
SCSI
X1032A	595-4258	501-5656 [F]	Single-Ended Ultra/Wide SCSI (SunSwift PCI)	501-2741 [F]
X2222A	595-5624	501-5727 [F]	Dual FastEthernet + Dual SCSI PCI Adapter	n/a
X6540A	595-4399	375-0005 [F]	Dual Single-Ended Ultra/Wide SCSI (PCI)	n/a
X6541A	595-4414	375-0006 [F]	Dual Differential Ultra/Wide SCSI (PCI)	n/a
X6758A	595-5945	375-3057 [F]	PCI Dual Ultra3 SCSI Host Adapter *	n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.

Option #	Manufacturing Part #	Description	Substitute Part #
System Board
n/a	375-3064 [F]	550MHz UltraSPARC IIi (Sun Fire V120 only)	n/a
n/a	375-3065 [F]	650MHz UltraSPARC IIi	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

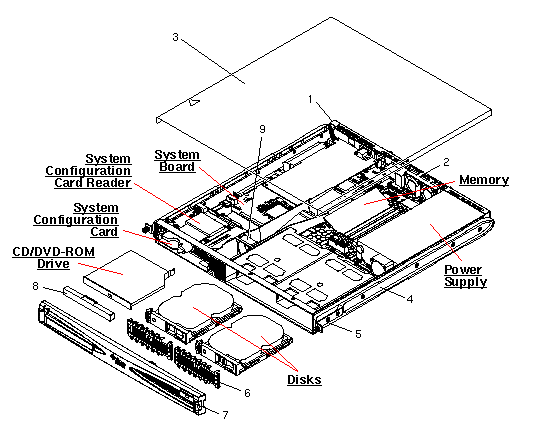

Exploded View

Table Legend

[F] = Field Replaceable Unit (FRU)

CODE	MANUFACTURING PART #	DESCRIPTION
1 NS NS 2 3	370-4283 340-6830 340-6840 540-5198 [F] 540-4757	Chassis Assembly PCI Blank Panel PCI Mounting Bracket Rear Dual Fan Assembly Top Cover
4	330-3184	Rear Rackmount Bracket
5	240-3953	Front Rackmount Bracket
6	340-6839	Disk Drive Filler Panel
7	330-3282	Front Bezel w/o Nameplate
8	None	CD-ROM Filler Panel
9	540-5299 [F]	CPU Fan with Air Duct
NS	330-3189	PCI Sliding Retainer
NS	370-4344 [F]	CD-ROM Cable and Paddleboard
NS	530-2264	AC Power Cord, AMP Mate-N-Lok to Y IEC-320 (option X7098A)
NS	530-3023	System Configuration Card Reader Cable
NS -	560-2570 530-2889	Serial Connector Kit, Option X6973A RJ45 to DB25 Serial Port Adapter (×5)
