Sun Fire[tm] V480 Server - Full Components List

Boot PROM
Centerplane
Communication
Disks
Ethernet
Fibre Channel
Graphics
I/O Board
     Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch
U3505 525-1887 113034
Centerplane
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 501-5819 [F] Centerplane n/a
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 501-5856 [F] Remote System Control (RSC) Card n/a
X1074A
   X3895A
   X3901A
   X3903A 		595-5149
   595-5191
   595-5426
   595-5428 		370-3868 [F]
   370-3922 [F]
   530-2869 [F]
   530-2871 [F] 		SCI Adapter (SCI/P)
   Cluster 4 port SCI switch
   Cluster SCI Cable, 2M
   Cluster SCI Cable, 7.5M		 n/a
   n/a
   n/a
   n/a
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X4810A 595-6121 540-4721 [F] Sun OC48 Packet Over Sonet n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
Disks
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X6805A 595-6469 540-5408 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269		 390-0071 Seagate ST373405FC (73.4GB 10000 RPM FC-AL) n/a
390-0098 Fujitsu MAN3735FC (73.4GB 10000 RPM FC-AL) n/a
390-0121 Seagate ST373307FC (73.4GB 10000 RPM FC-AL) n/a
X6724A 595-5494 540-4525 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269		 390-0035 Seagate ST336704FC (36.4GB 10000 RPM FC-AL) n/a
390-0070 Seagate ST336605FC (36.4GB 10000 RPM FC-AL) n/a
390-0137 Seagate ST336607FC (36.4GB 10000 RPM FC-AL) n/a
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
Fibre Channel
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6727A * 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
n/a n/a 501-5822 [F] 2-Slot FC-AL Disk Backplane n/a
* - X6727A is the only FC card that supports internal multipathing.
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
X3685A 605-4651 375-3069 [F] XVR-500 Graphics Accelerator n/a
X1089A [S] 595-5342 370-4072 [F] SunVideo Plus n/a
I/O Board
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 501-5820 [F]
100-5311		 PCI Riser Board
IDPROM (not Field Replaceable)		 n/a
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Substitute
Part #
X7056A 595-6186 540-5086 [F] (1GB) 4 GB (4 × 1GB SDRAM DIMMs) 501-6109 [F]
X7053A 595-5729 501-5401 [F] (256MB) 1 GB (4 × 256MB SDRAM DIMMs) n/a
X7051A 595-5727 501-5030 [F] (512MB) 2 GB (4 × 512MB SDRAM DIMMs) n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
X9631A 595-6188 n/a Two Post Rackmount Kit n/a
X9713A 595-6189 530-3018 [F] Loop-B FC-AL Cable n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 300-1480 [F] Tyco 560 Watt Power Supply n/a
n/a n/a 375-3006 [F] DC Power Distribution Board n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 370-4412 [F] 8X DVD-ROM Drive n/a
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X7028A 595-6044 501-6334 [F] 900MHz UltraSPARC III Cu CPU/Memory Board n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

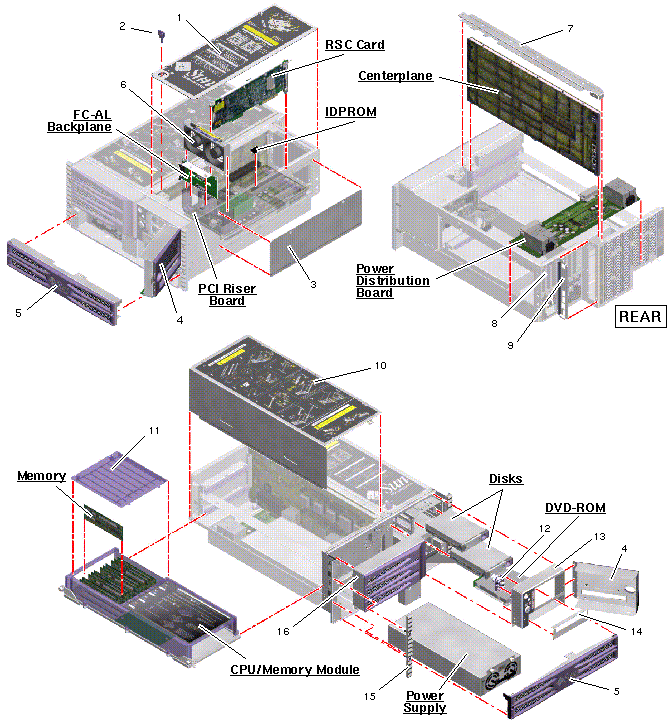

Exploded Views



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE MANUFACTURING
PART #		 DESCRIPTION
1 540-4714 PCI Access Panel
2
-		 330-2014 [F]
240-3940		 System Key
Top Lock
3 540-4712 PCI Riser Board Access Panel
4
-		 540-4907
330-3194		 Media Door
Media Door Bezel
5 540-4765 Power Supply Access Panel
6 540-4716 [F] PCI Fan Tray (1)
7 540-4791 Centerplane Top Stiffener
8 370-4388 [F] Back Panel Status LED Assembly
9 540-4835 External Connector Faceplate
10 540-4713 CPU Access Panel
11 none DIMM Access Panel
12 540-5063 [F] System Control Switch/Power Button Cable
13 540-4911 Front Bezel
14 340-7115 RMA Bezel
15 330-3277 Decorative Panel
16
-
-		 540-4715 [F]
330-3277
540-5064 [F]		 CPU Fan Tray (0)
Left/Right Front Dress Panel, 18 × 218 mm
Front Fan Tray Cable w/ Bracket 340-7241
NS 240-3940 Door Lock
NS 340-3256 PCI Filler Panel
NS 340-6970 CPU Cover Lock Pawl
NS 340-6971 PCI Cover Lock Pawl
NS 340-6972 CPU Cover Lock Linkage Rod
NS 370-4427 [F] Rack Mount Rail Kit
(370-4427-02 = 27")
(370-4427-03 = 25")
NS 530-2889 RJ45-to-DB25 Serial Port Adapter
NS
NS		 530-3013 [F]
530-3069 [F]		 FC-AL Backplane Power Cable
FC-AL Backplane Data Cable
NS 530-3018 [F] Loop-B FC-AL Cable (option X9713A)
NS
NS
NS		 540-4767
340-6828
375-3053 [F]		 Removable Media Assembly
DVD-ROM/Smart Card Reader Carrier
Removable Media Paddleboard and Cable
NS 540-4835 I/O EMI Assembly
NS 540-4911 Switchbox
