Ultra[tm] 30 Workstation - Full Components List

Boot PROM
Communication
CPU Module
Disks
Ethernet
Graphics
IDPROM
Input Devices
     Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch
U2003 525-1669 105930
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1035A [S] 605-1583 370-2811 [F] FDDI/P SAS 1.0 n/a
X1036A [S] 605-1584 370-2812 [F] FDDI/P DAS 1.0 n/a
X1039A [S] 605-1590 375-0001 [F] Token Ring Interface (TRI/P) 1.0 375-0073 [F]
X1040A [S] 605-1581 370-2728 [F] High Speed Serial Interface (HSI/P) 1.0 n/a
X1041A [S] 605-1582 370-2810 [F] Serial Asynchronous Interface (SAI/P) 1.0 375-0100 [F]
X1066A [S] 605-1599 501-3028 [F] SunATM-155/MFiber 3.0 n/a
X1067A [S] 605-1598 501-3027 [F] SunATM-155/UTP 3.0 n/a
X1068A [S] 605-1600 501-3029 [F] SunATM-622/MFiber 3.0 n/a
CPU Module
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #		 Previous
Part #
X1190A [S] 595-4893 501-4857 [F] 250MHz UltraSPARC II Module n/a 501-4278 [F]
X1191A [S] 595-4894 501-4849 [F] 300MHz UltraSPARC II Module n/a 501-4196 [F]
Disks
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X5214A [S] 595-4082 540-2938 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 370-2367 [F] Seagate ST34371WC
(4.2GB - 7200 RPM)		 370-2368 [F]
370-2809 Quantum VK45J05
(4.2GB - 7200 RPM)		 370-2368 [F]
370-3412 [F] Fujitsu MAB3045SC
(4.2GB - 7200 RPM)		 370-2368 [F]
370-3403 IBM DDRS-34560
(4.2GB - 7200 RPM)		 n/a
X5229A [S] 595-4716 540-3704 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 370-3413 [F] Fujitsu MAB3091SC
(9.1GB - 7200 RPM)		 370-2369
370-2370 [F]
370-3404 IBM DDRS-39130
(9.1GB - 7200 RPM)		 370-3413 [F]
370-3595 [F]
390-0004 [F]
370-3595 [F] Seagate ST39173WC
(9.1GB - 7200 RPM)		 370-3404
370-3413 [F]
390-0004 [F]
390-0004 [F] Fujitsu MAE3091LC
(9.1GB - 7200 RPM)		 370-3404
370-3595 [F]
390-0007 IBM DNES-309170
(9.1GB - 7200 RPM)		 n/a
X5234A [S] 595-4939 540-3881 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 370-3649 Seagate ST39102LC
(9.1GB - 10000 RPM)		 n/a
390-0005 Fujitsu MAG3091LC
(9.1GB - 10000 RPM)		 390-0009 [F]
390-0009 [F] Seagate ST39103LC
(9.1GB - 10000 RPM)		 390-0005
390-0037 [F]
390-0037 [F] Seagate ST39204LC
(9.1GB - 10000 RPM)		 390-0005
390-0009 [F]
X5251A [S] 595-4151 540-2951 [F]

Spud Bracket FRU
w/ 1.6" Bracket 540-3025		 370-2369 Seagate ST19171WC
(9.1GB - 7200 RPM)		 370-3413 [F]
X6520A [S] 595-4045 540-2936 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 370-2365 [F] Seagate ST32171WC
(2.1GB - 7200 RPM)		 370-2366 [F]
370-2808 Quantum VK22J05
(2.1GB - 7200 RPM)		 n/a
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X467A [S] 595-3780 [F] n/a MII to AUI Converter n/a
X1033A [S] 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A [S] 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1044A [S] 605-1591 375-0002 [F] Gigabit Ethernet 1.0 (GBE/P) n/a
X1141A [S] 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X2069A [S] 595-5414 501-5426 [F] Gigabit Ethernet FC-AL/P n/a
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1086A [S] 595-4603 370-3278 [F] SunVideo Plus n/a
X3658A [S] 595-4395 501-4174 [F] Creator Series 2 (FFB2) n/a
X3659A [S] 595-4394 501-4172 [F] Creator3D Series 2 (FFB2) n/a
X3660A [S] 595-4380 370-2256 [F] PGX 8-Bit Color Frame Buffer 370-3753 [F]
X3662A [S] 595-4607 501-4789 [F] Creator Series 3 (FFB2+) n/a
X3663A [S] 595-4605 501-5690 [F] Creator3D Series 3 (FFB2+) n/a
X3664A [S] 595-4871 501-5484 [F] Elite3D-m3 501-4860 [F]
X3665A [S] 595-4870 540-3902 [F] Elite3D-m6 540-3623 [F]
X3668A [S] 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID
U2706 525-1430 [F] 48T59 NVRAM 80xxxxxx
Input Devices
Option # Manufacturing
Part #(s)		 Description Substitute
Part #(s)
X180A [S] 595-1865 SunButtons 32-key function I/O device n/a
X190A [S] 595-1737 SunDials 8-dial interactive graphics I/O for 3-D n/a
X495A [S] 370-1414 [F] SunMicrophone n/a
n/a [S] 370-1678 [F] SunMicrophone II n/a
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Substitute
Part #
X7001A [S] 595-3810 501-2479 [F] (16MB) 32MB (2 × 16MB DIMM) n/a
X7002A [S] 595-3811 501-2622 [F] (32MB) 64MB (2 × 32MB DIMM) n/a
X7003A [S] 595-3812 501-2480 [F] (64MB) 128MB (2 × 64MB DIMM) n/a
X7004A [S] 595-3813 501-3136 [F] (128MB) 256MB (2 × 128MB DIMM) n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1131A-64.1 [S] 605-1630 375-0075 [F] SunPCi 300MHz n/a
X1131A-64.2 [S] 605-1641 375-0095 [F] SunPCi 400MHz n/a
X2087A [S] 595-5364 530-2867 [F] Noise Reduction Kit n/a
X2132A [S] 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7035A [S] 370-3860 370-3801 [F] SunPCi 128MB memory expansion n/a
X7041A [S] 370-3870 370-3800 [F] SunPCi 64MB memory expansion n/a
X7042A [S] 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A [S] 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A [S] 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
n/a [S] n/a 501-4155 [F] Audio Module n/a
X9627A [N] n/a 560-2548 72" Cabinet Rack Mount Kit n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 300-1343 [F] Zytec EP071295-C 350 Watt Power Supply n/a
n/a [S] n/a 300-1325
300-1337 [F] 		Lucent LP300A 300 Watt Power Supply (Pre-FCS)
Lucent LP300A 300 Watt Power Supply (A116)		 n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6004A [S] 595-4400 370-2729 [F] Triple Density Floppy n/a
X6106A [S] 595-4566 370-3279 [F] 4-8GB 1/4" SLR Tape Drive n/a
X6153A [S] 595-3803 370-2102 [F] SunCD 4 n/a
X6161A [S] 595-4046 370-2816 [F] SunCD 12 n/a
X6166A [S] 595-4749 370-3415 [F] SunCD 32 n/a
X6203A [S] 595-3972 370-1922 [F] 7-14GB 8 mm Tape Drive n/a
X6212A [S] 595-4384 370-2881 [F] 7-14GB 8 mm Tape Drive n/a
X6213A [S] 595-4381 370-2882 [F] 7-14GB 8 mm Tape Drive n/a
X6256A [S] 595-3877 370-2176 [F] 4-8GB 4 mm DDS-2 Tape Drive 370-2375 [F]
X6280A [S] 595-4161 370-2377 [F] 12-24GB 4 mm DDS-3 Tape Drive n/a
X6282A [S] 595-4163 370-2377 [F] 12-24GB 4 mm DDS-3 Tape Drive n/a
X6295A [S] 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 Tape Drive n/a
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A [S] 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A [S] 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6540A [S] 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A [S] 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
n/a [S] n/a 540-3016 [F] Floppy and SCSI Adapter (Drive Bay FRU) n/a
330-2148 Floppy and SCSI Adapter (Drive Bay) n/a
530-2322 Floppy and SCSI Adapter (Cable Assembly) n/a
System Board
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 501-3139 [F] 0MB FRU n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

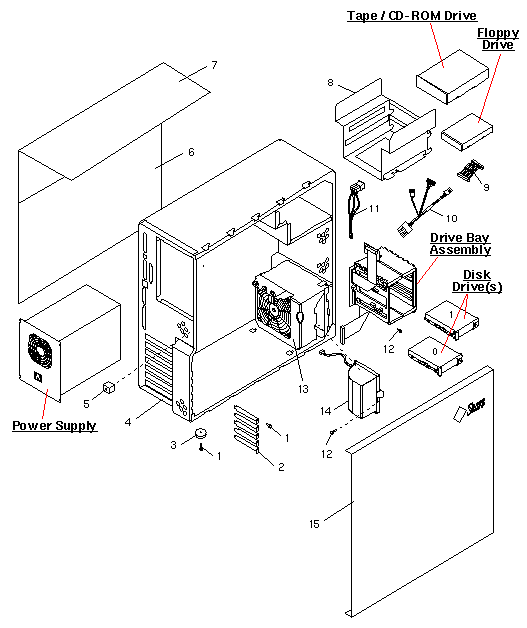

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 240-2711 M3 × 6 mm Screw
2
2		 240-2750
340-3559		 PCI Filler Panel
Audio Module Filler Panel
3
3		 330-2145 [F]
330-2731 [F]		 Foot
Foot (cost reduced)
4 340-3534 Chassis
5 540-2540 [F] Lockbox
6 330-2164 Lower Right Side Cover
7 330-2165 Upper Right Side and Top Cover
8 340-3557 Floppy and CD-ROM Bracket
9 530-2346 [F] Floppy Data Cable
10
10		 530-2345 [F]
530-2502 [F]		 Peripheral DC Wire Harness
DC Extension Cable for SLR Tape Drive
11 540-2991 [F] On/Off Switch and Cable Assembly
12 240-2714 M3 × 10 mm Screw
13 540-3017 [F] Fan FRU Assembly
14
-		 540-2975 [F]
370-1579 [F]		 Speaker FRU Assembly
Speaker
15 540-3015 Left Side Cover, Purple
NS 330-2186 [F] 5 1/4" Device External Filler Panel
NS 330-2187 [F] 3 1/2" Device External Filler Panel
NS 340-4067 3 1/2" Device Internal Filler Panel
NS 340-4068 5 1/4" Device Internal Filler Panel
NS 530-1871 [F] RJ45 to RJ45 Cable, 4M
NS 530-2068 [F] DB25 to 36-Pin Centronics Parallel Cable, 5M
NS 530-2093 [F] Shielded RJ45 to RJ45 Cable, 4M
NS
NS
NS
NS
NS		 540-2923
330-2141
330-2142
330-2143
330-2166		 Front Bezel Assembly
Front Bezel, Light Grey
Dress Panel, Purple
Power Switch Cover
Peripheral Bezel with Cutouts
NS 540-2986 [F] System Board Fan and Shroud Assembly
NS 595-3780 [F] MII to AUI Converter (requires AC power)
NS
-		 595-5364
530-2867 [F]		 Noise Reduction Kit, Option 2087
Voltage Regulated Fan Power Cable
