Ultra[tm] 5 Workstation - Full Components List

Boot PROM
Cables
Communication
CPU Module
Disks
Ethernet
Graphics
IDPROM
     Input Devices
Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch
U2703 370-3886 106121
Cables
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 370-3266 [F] Internal Cable Service Kit (see Exploded View) n/a
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X1035A [S] 605-1583 370-2811 [F] FDDI/P SAS 1.0 n/a
X1036A [S] 605-1584 370-2812 [F] FDDI/P DAS 1.0 n/a
X1039A [S] 605-1590 375-0001 [F] Token Ring Interface (TRI/P) 1.0 375-0073 [F]
X1040A [S] 605-1581 370-2728 [F] High Speed Serial Interface (HSI/P) 1.0 n/a
X1041A [S] 605-1582 370-2810 [F] Serial Asynchronous Interface (SAI/P) 1.0 375-0100 [F]
X1066A [S] 605-1599 501-3028 [F] SunATM-155/MFiber 3.0 n/a
X1067A [S] 605-1598 501-3027 [F] SunATM-155/UTP 3.0 n/a
X1068A [S] 605-1600 501-3029 [F] SunATM-622/MFiber 3.0 n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS 2.0 n/a
X1154A [S] 605-1615 375-0001 [F] Token Ring Interface (TRI/P) 4.0 375-0073 [F]
X1156A [S] 605-1613 370-2810 [F] Serial Asynchronous Interface (SAI/P) 2.0 375-0100 [F]
X2154A [S] 605-1643 375-0073 [F] Token Ring Interface (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #		 Previous
Part #
n/a n/a 501-5741 [F] 400MHz UltraSPARC IIi Module 501-5740 [F] n/a
n/a n/a 501-5148 [F] 360MHz UltraSPARC IIi Module n/a n/a
n/a [S] n/a 501-5568 [F] 333MHz UltraSPARC IIi Module 501-5090 [F] n/a
n/a [S] n/a 501-5039 [F] 270MHz UltraSPARC IIi Module n/a 501-4477 [F]
Disks
Option # Top Level
Part #		 Assembly
FRU		 Manufacturing
Part #		 Description Substitute
Part #
X6174A 370-4348 n/a 370-4327 [F] Seagate ST320420A
(20.4GB - 7200 RPM Ultra ATA/66)
Barracuda ATA II		 370-5560 [F]*
370-4327 [F] Seagate ST320414A
(20.1GB - 7200 RPM Ultra ATA/100)
Barracuda ATA III
370-4327 [F] Seagate ST320011A
(20.1GB - 7200 RPM Ultra ATA/100)
Barracuda ATA IV
* Replace 370-4327 with 370-5560 only if the disk is being mirrored. If a 370-4327 disk of either 20.1 or 20.4 GB is not being mirrored, it should be replaced with 370-4327.
X5236A [S] 370-3934 n/a 370-3693 [F] Seagate ST39140A
(9.1GB - 7200 RPM EIDE)
Medalist Pro 9140		 370-4327 [F]
370-3693 [F] IBM DJNA-370910
(9.1GB - 7200 RPM EIDE)
Deskstar 22GXP		 370-4327 [F]
370-3693 [F] Seagate ST39111A
(9.1GB - 7200 RPM Ultra ATA)
Barracuda ATA II		 370-4327 [F]
370-3693 [F] Seagate ST39120A
(9.1GB - 7200 RPM Ultra ATA)
Barracuda ATA		 370-4327 [F]
X5227A [S] 370-3316 n/a 370-3176 [F] Seagate ST34342A
(4.3GB - 4500 RPM EIDE)		 n/a
n/a [S] n/a n/a 370-3692 [F] 3.5" 5400 RPM 4.3GB Ultra ATA:
Seagate ST34312A
Seagate ST34321A		 n/a
n/a [S] n/a n/a 370-3863 [F] 3.5" 5400 RPM 8.4GB Ultra ATA:
Seagate ST38410A
Seagate ST38420A		 n/a
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
X467A [S] n/a 595-3780 [F] MII to AUI Converter n/a
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
X1089A [S] 595-5342 370-4072 [F] SunVideo Plus n/a
X3660A [S] 595-4380 370-2256 [F] PGX 8-Bit Color Frame Buffer 370-3753 [F]
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID
U13 525-1430 [F]
525-1817 [F] 		48T59 NVRAM 80xxxxxx
Input Devices
Option # Manufacturing
Part #(s)		 Description Substitute
Part #(s)
n/a 370-1678 [F] SunMicrophone II n/a
X180A [S] 595-1865 SunButtons 32-key function I/O device n/a
X190A [S] 595-1737 SunDials 8-dial interactive graphics I/O for 3-D n/a
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Substitute
Part #
X7038A 370-3806 370-3798 [F] (128MB) 256MB (2 × 128MB DIMM), 50ns n/a
n/a [S] n/a 370-3211 [F] (16MB) 16MB DIMM, 60ns n/a
X7036A [S] 370-3804 370-3796 [F] (32MB) 64MB (2 × 32MB DIMM), 50ns n/a
X7037A [S] 370-3805 370-3797 [F] (64MB) 128MB (2 × 64MB DIMM), 50ns n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X2131A 605-1648 375-0131 [F] SunPCi II 600MHz, 64MB memory n/a
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
X1131A-64.2 [S] 605-1641 375-0095 [F] SunPCi 400MHz n/a
X7041A [S] 370-3870 370-3800 [F] SunPCi 64MB memory expansion n/a
X7035A [S] 370-3860 370-3801 [F] SunPCi 128MB memory expansion n/a
X1131A-64.1 [S] 605-1630 375-0075 [F] SunPCi 300MHz n/a
n/a n/a 370-3196 [F] PCI Riser Board n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 370-3162 [F] Mitac MPU-200REF 200 Watt Power Supply n/a
n/a n/a 370-4326 [F] 200 Watt Power Supply with Power Factor Correction n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X5246A 370-4361 370-4353 [F] 48X EIDE CD-ROM [standard] n/a
n/a n/a 370-3159 [F] Dual Density Floppy Drive [standard] n/a
X6171A [S] 370-3757 370-3694 [F] 32X EIDE CD-ROM [standard] n/a
X6170A [S] 370-3318 370-3319 [F] 24X CD-ROM 370-3694 [F]
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X5010A 595-5377 375-0097 [F] Single-Channel Single-Ended Ultra/Wide SCSI (PCI) n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
System Board
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 375-0009 [F] 270MHz n/a
n/a 375-0066 [F] 270/333MHz n/a
n/a 375-0079 [F] 360MHz 375-0115 [F]
n/a 375-0115 [F] 360/400MHz 375-3060 [F]
n/a 375-3060 [F] 400MHz 375-0115 [F]

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

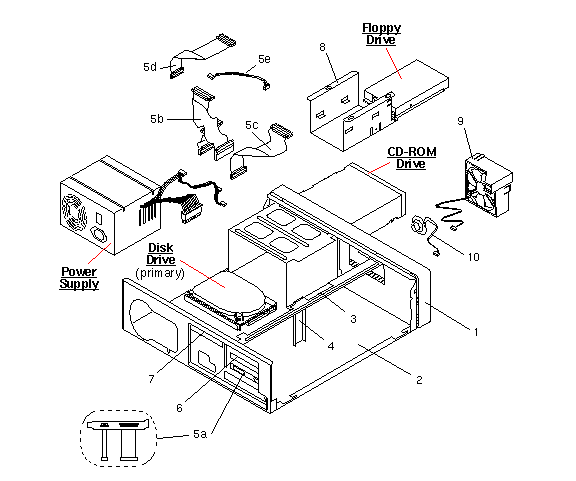

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
2
3
4		 370-3689 [F]
None
None
None		 Front Bezel
Chassis
Chassis Stiffener
Vertical Holddown Bracket/Strut
5a-e
5a
5b
5c
5d
5e
NS 		370-3266 [F]
370-3165
370-3163
370-3276
370-3164
370-3275
370-4227 		Ultra 5 Cable Service Kit/FRU
Serial B and Parallel Cable Assembly
Single EIDE Disk Cable
CD-ROM Cable
Floppy Cable
Audio Cable
Dual EIDE Disk Cable (not in Kit 370-3266)1
6
7		 None
None		 PCI Filler Panel
PCI Slot 2 Filler Panel Adapter Bracket
8
8		 None
None		 Floppy Mounting Bracket
Secondary/Front Disk Mounting Bracket
9 370-3168 [F] 8 Centimeter Fan
10
10		 370-3170 [F]
370-4212 [F]		 Speaker Assembly (not interchangeable with 370-4212)
Speaker Assembly (May 2000 - not interchangeable with 370-3170)
NS
NS
NS		 370-4101 [F]
340-4068
370-4126		 1/2-Height Peripheral Filler Panel Kit
Internal 1/2-Height Peripheral Filler Panel
External 1/2-Height Peripheral Filler Panel
NS 530-1871 [F] Twisted Pair Ethernet Cable, RJ45 to RJ45
NS 530-2068 [F] DB25 to 36-Pin Centronics Parallel Cable, 5M
NS 530-2357 [F] Video Adapter Cable, HD15M to DB13W3F
NS 530-2961 Twisted Pair Ethernet Cable, RJ45 to RJ45
NS None Power Switch
NS None Top Cover
NS None Primary/Rear Disk Mounting Bracket
NS None CPU Module Hold-down Bracket
1 For Ultra 5 installations with two disk drives, use the Ultra 10 kit 370-3267.
