Sun Fire[tm] 280R Server - Full Components List

Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
     Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch (Date)
U2103 525-1807
525-1899 		111292
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 501-4901 [F] Remote System Control (RSC) Card 501-5856 [F]
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1074A
   X3895A
   X3901A
   X3903A 		595-5149
   595-5191
   595-5426
   595-5428 		370-3868 [F]
   370-3922 [F]
   530-2869 [F]
   530-2871 [F] 		SCI Adapter (SCI/P)
   Cluster 4 port SCI switch
   Cluster SCI Cable, 2M
   Cluster SCI Cable, 7.5M		 n/a
   n/a
   n/a
   n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1066A [S] 605-1599 501-3028 [F] SunATM-155/MFiber 3.0 n/a
X1067A [S] 605-1598 501-3027 [F] SunATM-155/UTP 3.0 n/a
X1068A [S] 605-1600 501-3029 [F] SunATM-622/MFiber 3.0 n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS 2.0 n/a
X1154A [S] 605-1615 375-0001 [F] Token Ring Interface (TRI/P) 4.0 375-0073 [F]
X2154A [S] 605-1643 375-0073 [F] Token Ring Interface (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X7064A 595-6681 501-6395 [F] 1015MHz UltraSPARC III Cu Module n/a
X7009A 595-6248 501-6002 [F] 900MHz UltraSPARC III Cu Module n/a
X6990A [S] 595-5787 501-5675 [F] 750MHz UltraSPARC III Module n/a
n/a [S] n/a 501-5988 [F] 750MHz UltraSPARC III Module 501-5675 [F]
Disks
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X6805A 595-6469 540-5408 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269		 390-0071 Seagate ST373405FC (73.4GB 10000 RPM FC-AL) n/a
390-0098 Fujitsu MAN3735FC (73.4GB 10000 RPM FC-AL) n/a
390-0121 Seagate ST373307FC (73.4GB 10000 RPM FC-AL) n/a
X6742A 595-5961 540-4905 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269		 390-0071 Seagate ST373405FC (73.4GB 10000 RPM FC-AL) n/a
390-0121 Seagate ST373307FC (73.4GB 10000 RPM FC-AL) n/a
X6724A 595-5494 540-4525 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269		 390-0035 Seagate ST336704FC (36.4GB 10000 RPM FC-AL) n/a
390-0070 Seagate ST336605FC (36.4GB 10000 RPM FC-AL) n/a
390-0137 Seagate ST336607FC (36.4GB 10000 RPM FC-AL) n/a
X6720A [S] 595-5216 540-4191 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-5928
or 340-6640 or 340-7269		 390-0011 Seagate ST318203FC
(18.2GB 10000 RPM FC-AL)		 n/a
390-0034 Seagate ST318304FC
(18.2GB 10000 RPM FC-AL)
X6706A [N] 595-6703 540-4525 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640		 390-0035 Seagate ST336704FC (36.4GB 10000 RPM FC-AL)
with Solaris 8 pre-installed		 n/a
390-0070 Seagate ST336605FC (36.4GB 10000 RPM FC-AL)
with Solaris 8 pre-installed		 n/a
X6807A [N] 595-6704 540-4905 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640		 390-0071 Seagate ST373405FC (73.4GB 10000 RPM FC-AL)
with Solaris 8 pre-installed		 n/a
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
Fibre Channel
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
n/a n/a 501-5699 [F] FC-AL Backplane n/a
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID
U2101 525-1788 [F] SEEPROM xxxxxxxx
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Previous
Part #		 Substitute
Part #
X7051A 595-5727 501-5030 [F] (512MB) 2 GB (4 × 512MB SDRAM DIMMs) 540-5085 n/a
X7052A 595-5728 501-5031 [F] (1GB) 4 GB (4 × 1GB SDRAM DIMMs) n/a 501-5031 [F]
X7053A 595-5729 501-5401 [F] (256MB) 1 GB (4 × 256MB SDRAM DIMMs) 540-5084 n/a
X7061A 595-6680 501-6175 [F] (256MB CR1/LC1) 1 GB (4 × 256MB SDRAM DIMMs) n/a 501-5401 [F]
X7062A 595-6679 501-6174 [F] (512MB CR1/LC1) 2 GB (4 × 512MB SDRAM DIMMs) n/a 501-5030 [F]
X7063A 595-6835 501-6173 [F] (1GB CR1/LC1) 4 GB (4 × 1GB SDRAM DIMMs) n/a 501-5031 [F]
X7050A [S] 595-5523 501-4489 [F] (128MB) 512MB (4 × 128MB SDRAM DIMMs) n/a n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
X9820A 595-6246 540-5088 [F] Fan Tray Assembly n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X9699A 595-5491 300-1457 [F] Lucent 560 Watt Power Supply n/a
n/a n/a 501-5775 [F] DC Power Distribution Board n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6168A 595-5558 390-0025 [F] 10X DVD-ROM Drive n/a
X6286A 595-4379 370-2376 [F] 12-24 GB 4 mm DDS-3 Tape Drive n/a
X6295A 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 Tape Drive n/a
X6167A [S] 595-4746 370-3415 [F] SunCD 32 n/a
X6213A [S] 595-4381 370-2882 [F] 7-14 GB 8 mm Tape Drive n/a
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
X6542A [S] 595-5074 375-0078 [F] SCSI RAID Controller (SRC/P) n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 501-5938 [F] 0MB FRU (SCHIZO >=2.2) 501-6230 [F]

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

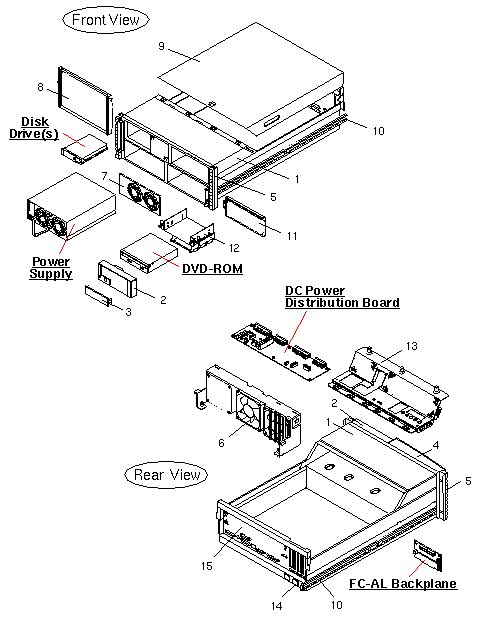

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
2
3
4
5
NS		 599-2386
540-4570
330-2400 [F]
330-2911 [F]
330-2910
330-2983		 Enclosure Assembly
RMA Bezel
Floppy Filler Panel
Curved Bezel
4U Trim Strip
Processor Module Slot Filler Panel
1
NS
NS		 540-4510
540-4136
540-4512		 Enclosure Assembly with System Board
System Board Shroud
System Board Shroud Cover
1
6
6
7
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS		 540-4511
540-4434 [F]
540-5088 [F]
340-6001
340-6118
530-2941 [F]
530-2822 [F]
540-4811 [F]
530-2824 [F]
530-2826 [F]
530-2864 [F]
530-3019 [F]
530-2942 [F]
530-2943 [F]
530-2830 [F]		 Enclosure Assembly
Fan Tray with 3× 120 mm Fans
Fan Tray, Option 9820 (replaced 540-4434 10/01)
Power Supply Filler Panel
Security Switch Lock
DC Power Signal Cable
DC Power Cable
Keyswitch/LED/Power Cable FRU Assembly
Keyswitch/LED/Power Cable
RMA 8-Bit SCSI Cable
FC-AL and RMA Power Cable (-04 required)
FC-AL Cable
8-Bit SCSI Cable
I2C Cable
Control Cable
1
8
9
10
11
12
13
14
15
NS
NS
NS
NS
1
-
-
-
-
-		 540-4509
540-4186 [F]
540-4188
340-6131
540-4230 [F]
540-4253
340-5834
540-4232 [F]
540-4365
340-5881
370-4031 [F]
530-2819 [F]
530-2861
540-4823
340-5827
340-5830
340-6947
340-5996
340-6948		 Chassis Assembly
Left Door
Rear Enclosure Top Cover
Inner Slide Rail
Right Door
Media Drive Mounting Assembly
Power Distribution Board Cover
AC Outlet to Power Supply
Rear Panel
Sun Blade 1000 System Board Mounting Panel
10A AC Receptacle and Line Filter
AC Power Cable
AC Ground Cable
Chassis Assembly (replaced 540-4231)
Base Enclosure
Disk Drive Bay
Front Top Cover (replaced 340-5831)
Front Enclosure
Power Bay Cover (replaced 340-5973)
NS 150-2850 [F] Lithium Battery
NS 250-1317 [F] Key
NS
NS
NS
NS
NS		 560-2625 [F]
340-6124
340-6125
340-5883
370-5264		 Rail Kit Assembly
Short Rack Mounting Bracket (540-2625-01)
Long Rack Mounting Bracket (540-2625-01)
Outer Slide Rail (540-2625-01)
Mounting Bracket + Rail (540-2625-02)
NS 340-6395 Torque Tool (shipping until September 2001)
NS 501-4901 [F] Remote System Control RSC2-A
NS 501-5856 [F] Remote System Control RSC2-B
NS
-
-		 540-4696 [F]
540-4136
540-4137		 CPU Module Shroud Assembly
CPU Module Shroud
CPU Module Shroud Cover (not used in Sun Fire 280R)
