Ultra[tm] 80 Workstation - Full Components List

Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
Input Devices
     Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch
U3007 525-1780 109082
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1035A [S] 605-1583 370-2811 [F] FDDI/P SAS 1.0 n/a
X1036A [S] 605-1584 370-2812 [F] FDDI/P DAS 1.0 n/a
X1066A [S] 605-1599 501-3028 [F] SunATM-155/MFiber 3.0 n/a
X1067A [S] 605-1598 501-3027 [F] SunATM-155/UTP 3.0 n/a
X1068A [S] 605-1600 501-3029 [F] SunATM-622/MFiber 3.0 n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS 2.0 n/a
X2154A [S] 605-1643 375-0073 [F] Token Ring Interface (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1195A [S] 595-5220 501-6071 [F] * 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black 		n/a
n/a n/a 501-5999 450MHz UltraSPARC II Module
4MB Cache Blaze 		n/a
n/a n/a 501-5687 [F] 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black/Blaze 		501-5539 [F]
501-6071 [F]
n/a n/a 501-5539 [F] * 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black 		501-5344 [F]
501-6071 [F]
* Mixing 501-6071 and 501-5539 in the same system is not recommended.
Disks
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X5242A 595-5496 540-4521 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 390-0051 Fujitsu MAJ3364MC
(36.4GB - 10000 RPM)		 n/a
390-0050 [F] Seagate ST336704LC
(36.4GB - 10000 RPM)		 390-0069 [F]
390-0065 Fujitsu MAN3367MC
(36.4GB - 10000 RPM)		 n/a
390-0069 [F] Seagate ST336605LC
(36.4GB - 10000 RPM)		 390-0050 [F]
390-0109 [F] Seagate ST336607LC
(36.4GB - 10000 RPM)		 n/a
X5237A [S] 595-5198 540-4177 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 390-0006 Fujitsu MAG3182LC
(18.2GB - 10000 RPM)		 n/a
390-0002 [F] Seagate ST318203LC
(18.2GB - 10000 RPM)		 390-0038 [F]
390-0060 [F]
390-0038 [F] Seagate ST318404LC
(18.2GB - 10000 RPM)		 390-0002 [F]
390-0060 [F]
390-0043 Fujitsu MAJ3182MC
(18.2GB - 10000 RPM)		 n/a
390-0048 IBM DDYS-T18350
(18.2GB - 10000 RPM)		 n/a
390-0066 Fujitsu MAN3184MC
(18.2GB - 10000 RPM)		 n/a
390-0085 [F] Seagate ST318305LC
(18.2GB - 10000 RPM)		 390-0002 [F]
390-0038 [F]
390-0060 [F]
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
X2069A [S] 595-5414 501-5426 [F] Gigabit Ethernet FC-AL/P n/a
Fibre Channel
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
X6729A [S] 595-4685 375-0040 [F] Single Loop PCI FC-AL Host Adapter (FC100/P) n/a
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X3256A 605-4649 540-4298 [F] XVR-1000 Graphics Accelerator (FFB3) n/a
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
X1089A [S] 595-5342 370-4072 [F] SunVideo Plus n/a
X3664A [S] 595-4871 501-5484 [F] Elite3D-m3 501-4860 [F]
X3665A [S] 595-4870 540-3902 [F] Elite3D-m6 540-3623 [F]
X3677A [S] 595-5406 501-5574 [F] Elite3D-m3 Series 2 Accelerator n/a
X3678A [S] 595-5239 370-3987 [F] Expert3D 24-Bit Color Frame Buffer n/a
X3679A [S] 595-5407 540-4313 [F] Elite3D-m6 Series 2 Accelerator n/a
X3684A [S] 605-1647 375-3052 [F] Expert3D Lite PCI Frame Buffer n/a
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID Substitute
Part #
U3008 525-1785 [F] 48T59 NVRAM 80xxxxxx 525-1430 [F]
Input Devices
Option # Manufacturing
Part #(s)		 Description Substitute
Part #(s)
X180A [S] 595-1865 SunButtons 32-key function I/O device n/a
X190A [S] 595-1737 SunDials 8-dial interactive graphics I/O for 3-D n/a
X499A [S] 595-5343
595-3723 [F]
370-1678 [F] 		PCI Multimedia Kit
CCD Camera II
Microphone II		 n/a
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Previous
Part #		 Substitute
Part #
X7043A 595-5409 501-5691 [F] (64MB) 128MB (2 × 64MB DIMM), 5V n/a n/a
X7005A 595-4691 501-6056 [F] (256MB) 512 MB (2 × 256MB DIMMS) w/ GAL (Gate Array Logic) 501-4743 [F] 501-6005 [F]
n/a n/a 501-6005 [F] 256MB DIMM w/ Gate Array Logic n/a 501-6056 [F]
n/a n/a 501-5218 [F] Ultra 80 Memory Riser Board n/a n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X2131A 605-1648 375-0131 [F] SunPCi II 600MHz, 64MB memory n/a
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
n/a n/a 501-4155 [F] Audio Module n/a
X1131A-64.2 [S] 605-1641 375-0095 [F] SunPCi 400MHz n/a
X7041A [S] 370-3870 370-3800 [F] SunPCi 64MB memory expansion n/a
X7035A [S] 370-3860 370-3801 [F] SunPCi 128MB memory expansion n/a
X1131A-64.1 [S] 605-1630 375-0075 [F] SunPCi 300MHz n/a
X9627A [N] n/a 560-2548 72" Cabinet Rack Mount Kit n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 300-1357 [F] Sony 660 Watt Power Supply n/a
n/a n/a 300-1407 [F] DC-DC Converter with Fan n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6168A 595-5558 390-0025 [F] 10X DVD-ROM n/a
X6282A 595-4163 370-2377 [F] 12-24GB 4 mm DDS-3 Tape Drive n/a
X6295A 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 Tape Drive n/a
X6004A [S] 595-4400 370-2729 [F] Triple Density Floppy n/a
X6106A [S] 595-4566 370-3279 [F] 4-8GB 1/4" SLR Tape Drive n/a
X6166A [S] 595-4749 370-3415 [F] SunCD 32 n/a
X6208A [S] 595-4390 370-2881 [F] 7-14GB 8 mm Tape Drive n/a
X6212A [S] 595-4384 370-2881 [F] 7-14GB 8 mm Tape Drive n/a
X6213A [S] 595-4381 370-2882 [F] 7-14GB 8 mm Tape Drive n/a
X6256A [S] 595-3877 370-2176 [F] 4-8GB 4 mm DDS-2 Tape Drive 370-2375 [F]
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
n/a n/a 540-3874
530-2691 [F] 		Floppy & SCSI Adapter (Drive Bay Assembly)
SCSI Cable Assembly		 n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 501-5168 [F] 0MB FRU n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

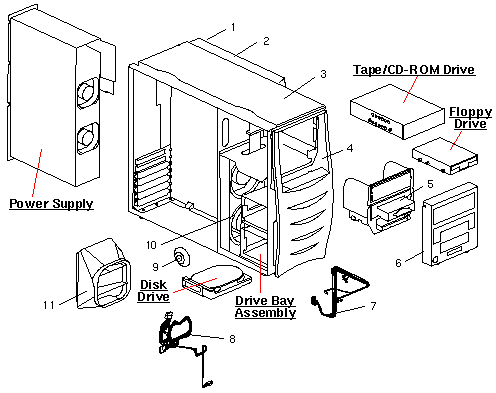

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 599-2256
599-2269
540-4073
540-3871
540-3876
330-4033
330-4034
340-4037
340-5227		 Chassis Assembly
Danish Chassis Assembly
Receiving Chassis Assembly
Chassis Assembly
Chassis Housing Assembly
Chassis Front
Chassis Rear
Peripheral Bay Shelf
I/O Panel
2 330-2685 Right Side Cover
3 330-2686 Top Cover
4 540-3877 Curved Front Bezel Assembly
5 540-3265
340-4067
340-4068
340-4764
540-3681
340-4858
340-4859		 Peripheral Assembly
3 1/2" Filler Panel
5 1/4" Filler Panel
5 1/4" Filler Panel with 3 1/2" Cutout
Peripheral Bracket with Faceplate
Bracket
Faceplate
6 540-3878
330-2186 [F]
330-2187 [F]
330-2324
330-2691
330-2693
330-2736		 Peripheral Bezel Assembly
5 1/4" Filler Panel
3 1/2" Filler Panel
Lightpipe (not replaceable)
5 1/4" Filler Panel with 3 1/2" Cutout
Bezel (not replaceable)
Power Button (not replaceable)
7 530-2583 [F] Interlock, LED, Power Switch, and Speaker Cable
8 530-2582 [F] Peripheral DC Power Cable
9 370-1579 [F] Speaker
10 540-3637
370-3718 [F]
330-2416		 Fan Assembly 540-3637-04
120 mm Fan (×2)
Fan Bracket
11 540-4048
330-2803
330-2709		 CPU Airguide Assembly
Dual Vane Snap
Airguide
NS 150-3112 [F] On/Off Switch
NS 150-3114 [F] Interlock Switch
NS 240-2750 PCI Filler Panel
NS 330-2805 [F] Processor Module Filler Panel
NS 340-6091 Memory Riser Torque Tool (only use 340-6091-02)
NS 340-3559 Audio Module Filler Panel
NS 330-2321 Foot
NS 530-2346 [F] Floppy Data Cable
NS 530-2937 [F] Internal SCSI Cable, Option 939
NS 540-2540 [F] Lockbox
NS 540-3875 Left Cover Assembly
NS
NS
NS
NS
NS		 540-3948 [F]
330-2737
330-2738
330-2739
330-2740		 System Board Shroud Assembly
CPU Front Bracket
CPU Rear Bracket
CPU Center Bracket
CPU DRAM Bracket
